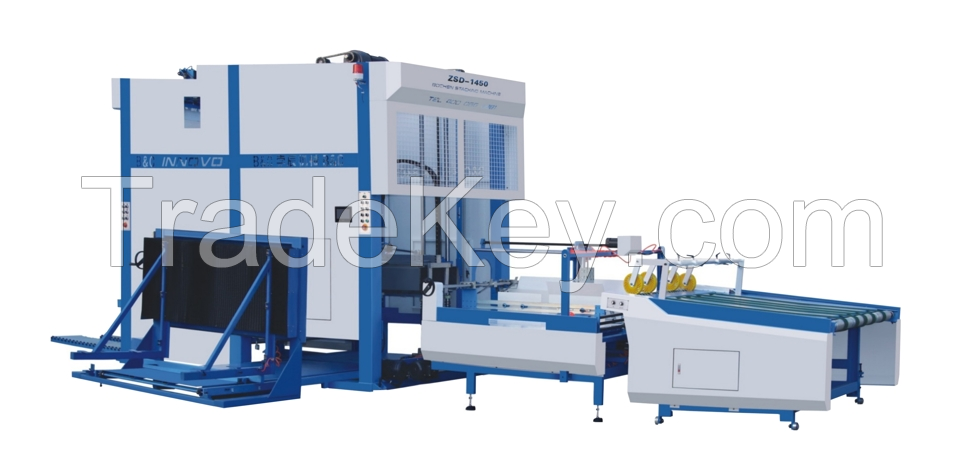

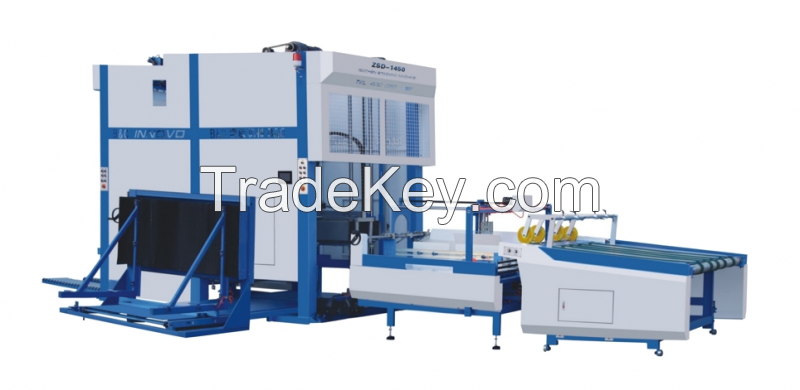

ZSD Automatic flip flop stacker machine

详情

Product Introduction
The stacking machine is an accessory product of the flute laminating machine, which comprises a slow paper table, a stack of paper tables, a turning table and a paper receiving table. Wherein, the paper is connected to the crepe paper unit through the slow feeding table, and the paper is stacked into a paper pile and then sent into the turning table, and the paper pile turning mechanism in the turning table is used to turn the paper pile once and turn it to the turning table.
The top part is fed into the paper separation mechanism by the belt conveying mechanism and then enters the top of the receiving table. After the whole paper is finished, the paper is dropped onto the pallet of the receiving table, thereby achieving full automatic paper counting, paper turning and paper stacking. It has the advantages of flattening and affixing paper and greatly reducing manpower requirements and effectively improving the efficiency of paper delivery, reducing the manual delivery intensity.
Performance characteristics
A. The pallet can be pushed into the machine automatically.
B. Matching 12,000 pcs/h speed flute laminating machine.
C.Flip mode can be changed to prevent the paper from being curved.
D. None stop collection function to improve production efficiency.
E. Reduce labor and reduce labor intensity.
F. Paper can be patted neatly and stacked into pile.
G.Machine can match with different manufacturers' flute laminating machine.
H.Paper can come out from back or side.
I. One -click adjustment (just enter the paper size).
J. Video monitoring (optional).
