离岸价格
获取最新报价0.5 ~ 6 / Meter
|Minimum Order
位置:
-
最小订单价格:
最小订单:
500 Meter
包装细节:
wood drum
交货时间:
7-15days
供应能力:
5000 Kilometer per Month
付款方式:
T/T, PayPal
联系人 Mr. Brook
Tianjin, China, Tianjin, Tianjin

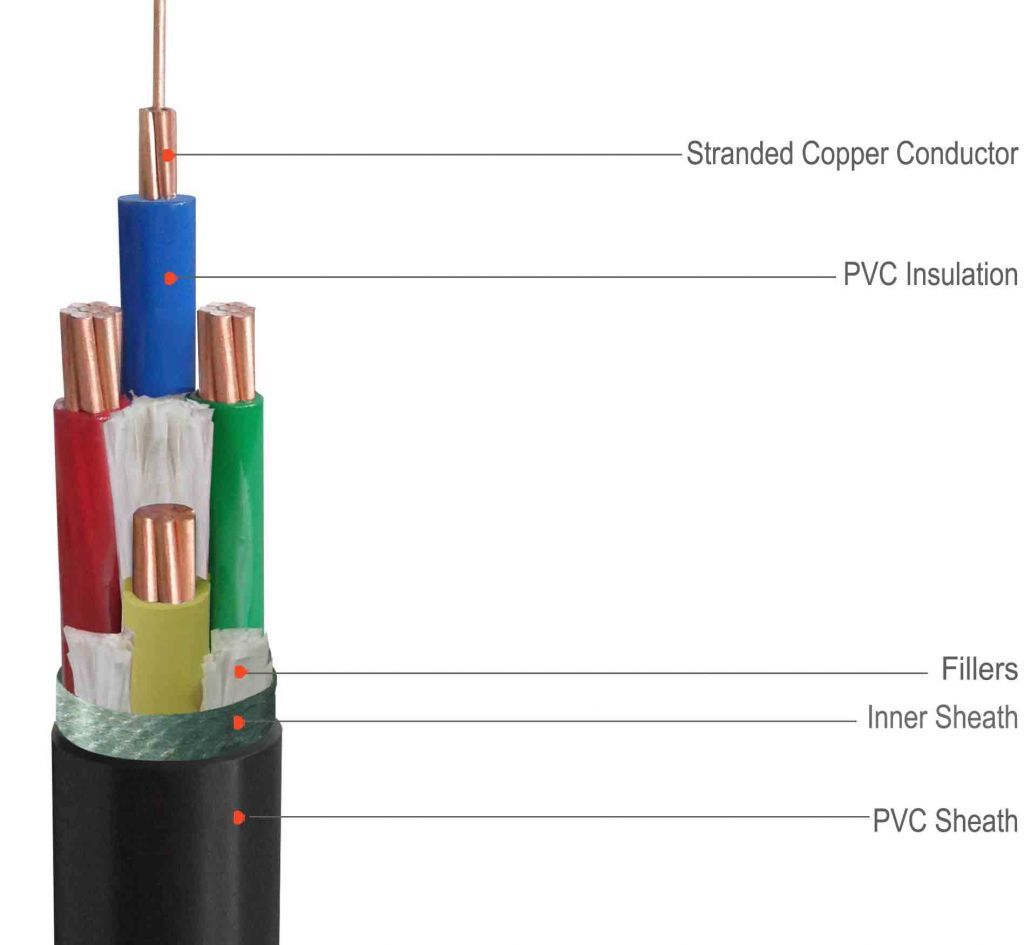

| Conductor | Compact Stranded Copper Conductor, Class 2 as per IEC ****8 |
| Circular solid Copper Conductor, Class 1 as per IEC ****8 | |
| Flexible Stranded Copper Conductor, Class 5 as per IEC ****8 | |
| Insulation | PVC/A |
| Filler | PP Yarn, or Paper |
| Wrapping Tape | Non-woven |
| Inner Covering | Extruded PVC |
| Armour | Steel Wire, or Steel Tape, or Aluminium Tape optional |
| Overall Sheath | PVC or PE |
Technical data
Rated voltage: 0.6 / 1 kV
Max. Conductor Temp.: normal (*0°C), short circuit no more than 5 s (**0°C when section-area below **0mm2, **0°C when section-area above **0mm2)
Min. Ambient Temp.: 0°C, after installation and only when cable is in a fixed position
Min. Bending Radius: *0 x cable O.D for single-core non-armoured cables
*5 x cable O.D for single-core armoured cables
*5 x cable O.D for multi-core non-armoured cables
*2 x cable O.D for multi-core armoured cables
