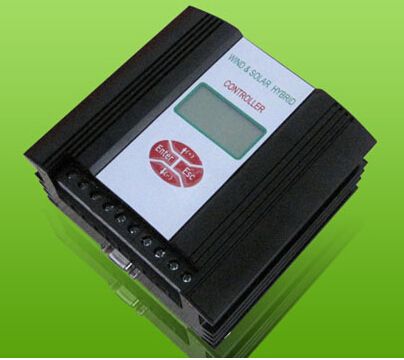

1.General Description of Wind and Solar Hybrid Controller

The advanced wind/solar hybrid controller is specially designed for high-end small-scale wind/solar hybrid system and especially suitable for wind/solar hybrid street light system and wind/solar hybrid monitoring system. It can also control the wind generator and solar cells to charge the batteries safelly and efficiently.

The advanced wind/solar hybrid controller is specially designed for high-end small-scale wind/solar hybrid system and especially suitable for wind/solar hybrid street light system and wind/solar hybrid monitoring system. It can also control the wind generator and solar cells to charge the batteries safelly and efficiently.
Performance Features of Wind and Solar Hybrid Controller

◆ Reliability：Intelligentized ,modularized, simple structure design with powerful funtion and stable performance.；The high-quality components and the strict production process make the controller suitable for the severe environment .It also have reliable performance and service life.

◆ ＰＷＭ charging ways，voltage limitting and current limitting charging pattern：Controller will charge battery with current limitting when battery power is low .Controller will charge battery with voltage limitting when battery power is high. In order to extend the service life of the battery. the over power will be unloaded by PWM.

◆ Two DC output：There are various output control modes can be choose for each DC output. Including: (1)constant on, (2)constant off , (3)constant half-power, (4)light-controll on ,light-control off, (5)light-control on and time-control off, (6)light-control on, time-control & half-power , light-control off, (7) light-control on, time-control & half-power , time control off. Through the LCD buttons users can set three different output control modes including: (1)constant on. (2)light-controll on ,light-control off, (3)light-control on and time-control off.

◆ LCD display： Running data and system status are displayed in the LCD screen. Including: battery voltage, wind turbine votage, PV voltage, wind power, PV power, wind current,PV current, load current,output control mode ,the output off time of load , voltage point of light-control on, voltage point of light-control off, indicating lamp stands for day or night, battery power status, load status, as well as over-voltage, under-voltage, over-load, short circuit, etc.

◆ Protection funtions: Including: solar panel reverse-charging, solar panel reverse-connection, battery over-charge, battery over-discharge, battery reverse-connection, load short-circuit, over-load, lightning, wind turbine current limitting, wind turbine automatic brake and manual brake.

◆ Optional remote communication function：The software can demonstrate monitoring control system status in real-time, such as battery voltage, wind turbine voltage, solar panel voltage, battery charging current, wind turbine charging current, battery charging current, battery charging power, solar panel charging power, wind turbine charging power, Wind Turbine RPM etc. User can adjust parameters from software. Meanwhile the software can control running status of wind turbine and load.

◆ Optional Low voltage charging module,：This function enables wind turbine to charge battery under low power. The input impedance and the wind turbine starting charge voltage point can be modified through serial port communication depending on the different characteristics of wind turbine .

◆ Optional By-pass function：When the battery is over discharged, the device can automatically switch to city grid and use city grid power to charge the load to ensure stability of power system. If the battery is over discharged the second time in the same day ,the controller will not recovery automatically.Only when the battery voltage restores to the voltage recovery point and the lights are off once (the lights are on for the next day),it will automatically switch to the battery for the load power .

◆ Optional temperature compensation function.

Network monitor system is a high expansibility monitoring software. The software produced for the advanced wind/solar hybrid controller allows for setting the parameters and for control and for monitoring the electrical parameters.

Users can check or set the parameters and the running state of the system\'s running process. Users can also control the running stats of the wind turbine. Meanwhile, the software have some advantages ,including,simple to use, high capacity, multifunctional, multiple languages ect.
