离岸价格
获取最新报价( Negotiable )
|Minimum Order
位置:
-
最小订单价格:
-
最小订单:
1 Set
包装细节:
Woodcase
交货时间:
60days
供应能力:
10 Set per Week
付款方式:
T/T
Taiwan
联系人 Ms. Koko
NO.322 LIANCUN RD .,FENGYUAN DIST.,TAICHUNG CITY 42082 TAIWAN, TAICHUNG, Other
| Refer No:20140708 | Quoation | Date:July 8th 2014 | |||||||
| Customer: | |||||||||
| Modle No | Produd Name | Quantity | Set Price FOB | Amount | |||||

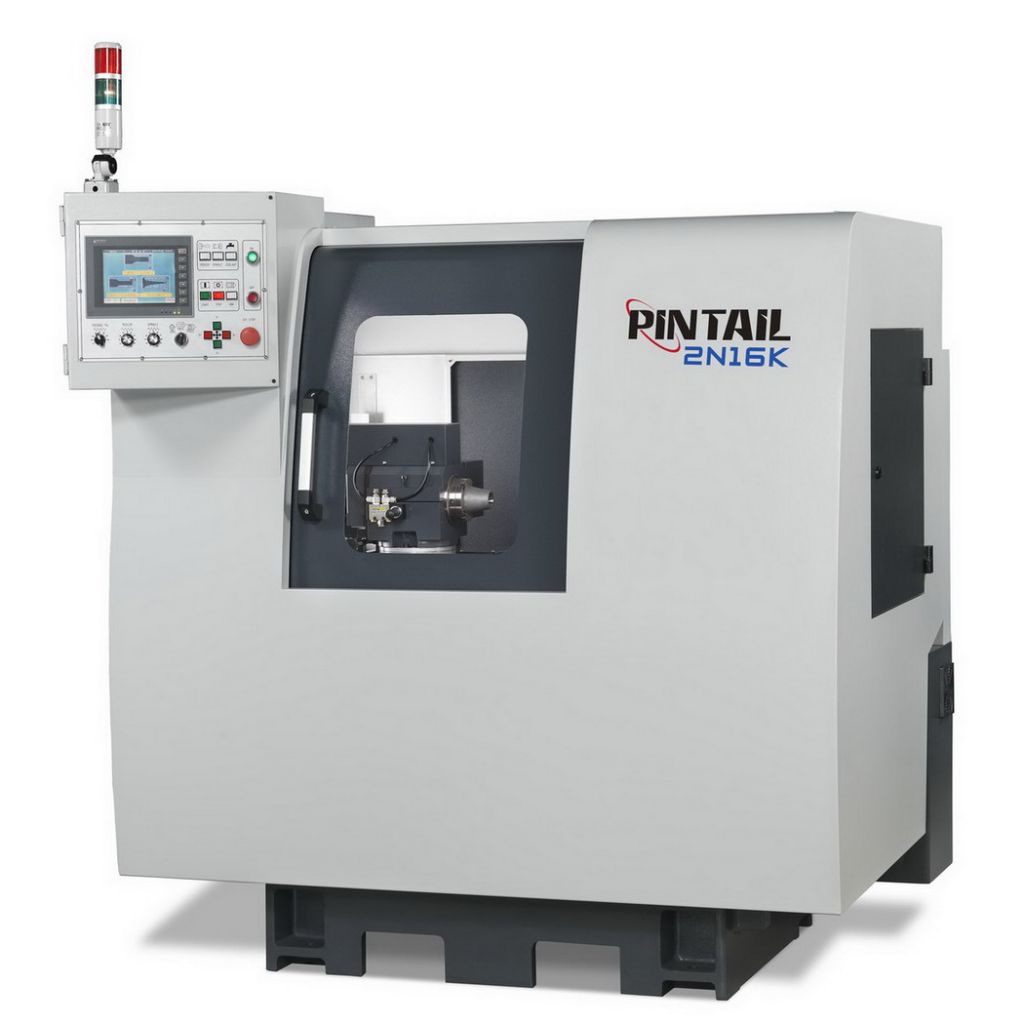

| 2N16K-FL |
|
1 | US$38,000.0 | US$38,000.00 | |||||
| Standard Accessories | Quantity | ||||||||
| Grinding wheel adaptor | 1 | ||||||||
| collect (∮4,∮6*1) | 1 | ||||||||
| Tool box and accessories *1 | 1 | ||||||||
| work lamp*1 | 1 | ||||||||
| Coolant System(Standard) | 1 | ||||||||
| Receiving Patform | 2 | ||||||||
| Probe gauge | 1 | ||||||||
| Special Accessories | PRICE/USD | Quantity | |||||||
| collect :∮3.4.8.10.12.16.20 | |||||||||
| Oil Fislter | 1200 | 1 | |||||||
| Original Price:Usd45,000- | |||||||||
| Specifical Price :Usd38,000/Set FOB | |||||||||
| Remark | 1.Payment:30% TT in deposit ,70% pay by TT before shippment . | ||||||||
| 2.Delivery :60days after received the payment . | |||||||||
| 3.The quotation not inculde installation charge . | |||||||||
| 5.Transportation and accommodation charges and expenses are for account of buyer | |||||||||
| 6.The quotation is valid for 4 month. | |||||||||
| Buyer: | Pintail Machinery Co.,Ltd | ||||||||
| Specification | |||||||||
| Workpiece Diameter | ∮3,4,6,8,10,12 | ||||||||
| Max.Travel X-axis | 300mm |
|
|||||||
| Max.Travel Y-axis | 250mm | ||||||||
| Min.Setting X-axis | 0.001mm | ||||||||
| Min.Setting Y-axis | 0.001mm | ||||||||
| Work Table Speed X-axis | 0-8m/min | ||||||||
| Work Table Speed Y-axis | 0-8m/min | ||||||||
| Work Head Speed | 0-1300rpm | ||||||||
| Spindle Speed | 0-6000rpm | ||||||||
| Motor Work Axis | Servo 750w | ||||||||
| Motor X Axis: | 850w Servo Motor | ||||||||
| Motor YAxis: | 850w Servo Motor | ||||||||
| Work Range: | 0.2-16mm | ||||||||
| Machine Size: | 1650*1700*1850mm | ||||||||
| Machine Wight: | 1700kgs | ||||||||
