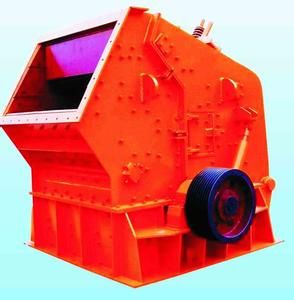

Structure features of stone impact
crusher
1.Big output opening,high crushing cavity,suitble in high
hardness,big pieses and less power ;
2.The gap in the impact and the hammer plate can be
adjusted,efficient control the output feed fineness, the final
production has good shape;
3.Tight strucure, good equipment rigidity,big rotational
inertia;
4.High hammer plate,big impact resistance and wear resistance.;
5.No-board conection,easy maintenance and rellable operation;
6.Full-featured,high-efficiency,small dentel wear and high overall
efficiency.
Application of PF stone impact
crusher:
Impact crusher is applicable to crushing ore of various compressive
strength levels, the breaker is ideal processing equipment for
aggregate of top grade road surface and water and electricity
construction. Impact crusher with excellent performance,
counterattack breaker can be widely applied in expressway
construction, hydraulic engineering, high speed railway and
breakstone for buildings.
Stone impact crusher Working
Principle:
The impact crusher crushes materials with impact force. When the
materials enter the blow bar area, they are crushed due to the
high-speed impact of the blow bar and are thrown to the impact
plates on the rotor for secondary crush. Then the materials will be
shot back to the blow bar again for the third crush. This process
repeats until the materials are crushed to the required size and
discharge from the lower part of the machine. The size and shape of
the finished powder can be changed by adjusting the gap between the
impact rack and rotor support. The machine employs self-weigh
security device in its back frame. When other objects enter the
impact cavity, they will be forced out the machine by the impact
rack in the front and back of the machine.
General description of PF stone impact
crusher:
PF series impact crusher are designed for crushing ores and rocks
with partical size less than ******0mm and compression strength no
more than **0Mpa. Impact crusher has a feature of big crushing
ratio, high-effeciency crushing, cubic shape, selectable crushing
and etc. It is suitable for crushing different compression strength
of rocks and is widely used in mining, cement and concrete
industries.
