The machine parts is Electroplating and the motor is
metal

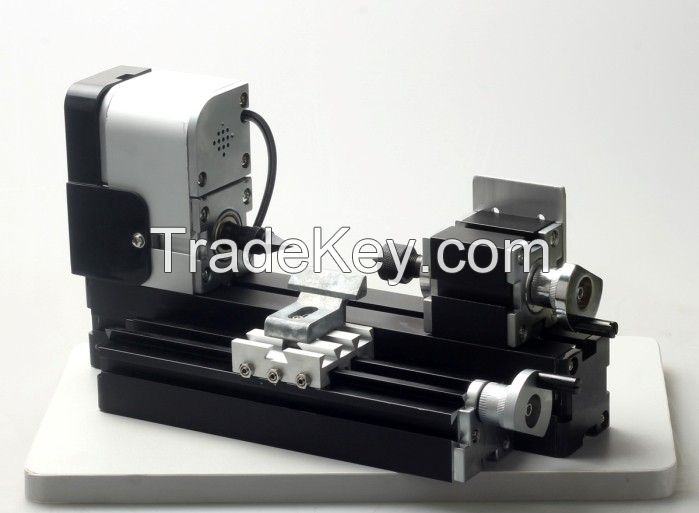

Mini wood-turning lathe features:
Machine main parts, such as the spindle box, motor blades,
tailstock, pedestal, the slider, belt protection cover, gongs bed
supports, connection piece, gear adopts full metal
structure
The handwheel with accuracy of 0.02 mm scale line, increase the
accuracy of the machine tool machining
1. Softwood and hardwood can be processed, modelling can follow
one\'s inclinations.
2. You can use the three jaw chuck chuck (1 ~ 6 mm) or clamping
workpiece, Hight of center is 25 mm. Distance of center to center
is 135 mm. The color of the machine tool is composed of red and
black classical collocation.
Technical parameters:
1, the Moter speed: 12000 RPM/min., Motor, blade, metal
gear.
2, Input voltage/current/power: 12VDC/3A /36 w.
3, Max. Processing diameter: 45 mm.
4, Max. Processing length: 135 mm.
5, processing materials: Wood, engineering plastics, soft metal
(aluminum, copper, etc. ).
6, transformer has overcurrent, overvoltage and overheating
protection
7. The handwheel with accuracy of 0.02 mm scale line, increase the
accuracy of the machine tool machining
