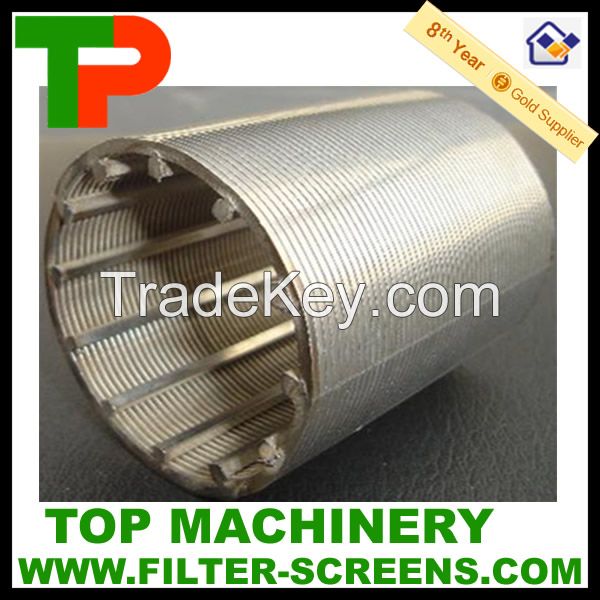

Filter screen mesh
Outline:
The filtering screen element is made of stainless steel, composed of supporting rods and warped wire, with various shapes, pipe, tube, plate, basket, conical, bend, arc etc, which widely used in filter, and filtering system like as Beer, Beverage, Mineral, Coal, Petrol Oil, Chemicals, Medicine, Paper, Starch Production line, water-treatment, Water Well and Power Station etc.
|
Product information(Support customization) |
|
|
Material |
Stainless steel **4/**4/**6/**6L/***5, or low carbon galvanized steel (LCG) |
|
Technology |
Full seamless welded |
|
Shape |
pipe, tube, plate, basket, conical, bend, arc etc |
|
Wire style |
V/Wedge style |
|
Screen Size(mm) |
|
|
Diameter |
******0 |
|
Slot (min) |
0.**5 |
|
Length |
*0~***0 |
|
Wrapped Wire size (mm) |
|
|
Width x Height |
0.*5*1.*0, 1.*0x2.*0, 1.*0x2.*0, 2.*0x2.*0, 2.*0x3.*0, 1.*0x4.*0, 3.*0x4.*0, 3.*0x5.*0, 3.*0x6.*0 |
|
Support Rod size (mm) |
|
|
Width x Height |
2.*0x2.*0, 2.*0x3.*0, 3.*0x4.*0, 3.*0x5.*0, 3.*0x6.*0 |
Feature & advantage:
High opening area: shall reduce the water level, save energy consumption. And make the speed of groundwaters entering into the screen much slower than other filtration apparatus, which will avoid sand entering into screen because of high water pressure, thus reduce the abrasion of the pump also.
Continuous opening slot: supporting rods and longitudinal wire makes continuous opening slot which significantly increase the available open area ,more water pass freely.
Full seamless welded: made by V-shape or wedge shape wire around internal array of longitudinal supporting rod, and each intersecting point of warped wire and rod is fusion welded , the V or wedge shaped wire wraps around the supporting rods over the full length of the screen creating a continuous slot opening, make sure high strength to bear abundant water pressure , safety , long-life usageService:
1.Samples: FREE samples available
2.Customized: Accepted, Autocad drawing can be provided.
3.After-sale service:Slovakia,Romania, Iran, India, Vietnam oversea office
Package & shipment
Wooden case packaged, delivery in 7 working days by road/train/sea/air.
Please feel free to send inquiry with screen dimension, WRAPED WIRE SIZE, ROD SIZE, QTY., quotation will be sent ASAP!
