Toothbrush Making Machine Line

详情

1. Brief Intrduction



    Toothbrush machine line capacity: 125ton/year,

    Each toothbrush weight is 20g,

    Quantity/year is about 6250000pcs.



2. The toothbrush making machine line flow



    Injection machine(make the toothbrush handle)→Fully-automatic toothbrush production line(plant bristle, cut bristle, grinding bristle) → Testing →Packing machine line



3. Manufacturing Scope



Part I: Brush handle production line

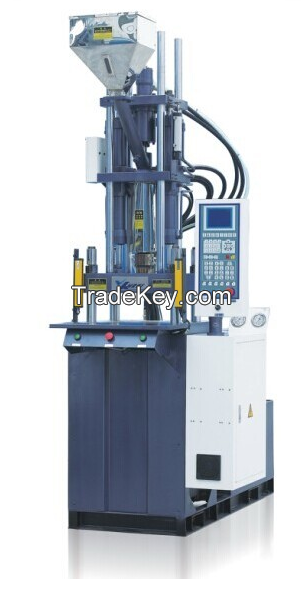

Mechanical rotary machine

machinery oil-way part:

1. high efficiency: 2-3s can be saved for one cycle time, which improves production efficiency.

2. high safety:Driving of rotary table, stable and smooth, inserts can slide easily; it has 3 level fixed position, quick, silent.

3. accurate manufacture

4. stable running:electric-hydraulic proportional flow valve with superelevation response

a. flow value will change along with rake ratio line at short time,which can ensure disk can change to low speed;

b. speed of disk can be improved to save time;

c. impact force is reduced, service life is lengthened;

d. controllable performance is improved;

5. higher speed:rotating is more light, mute, and accurate and more molarity room is added.

6. Double pump: asynchronous action can be proceeded at the same time, which improves efficiency and saves time and energy.

7. Lubrication system is adopted to prolong service life.

8. Prolong life-span device is setted up at mechanical axis and rational structure.

9. Oil-way with bi-proportion, which is high accuracy, easy operation.

10. space saving and labor saving



Part II: Fully- automatic toothbrush production line

Part III: Toothbrush test device
