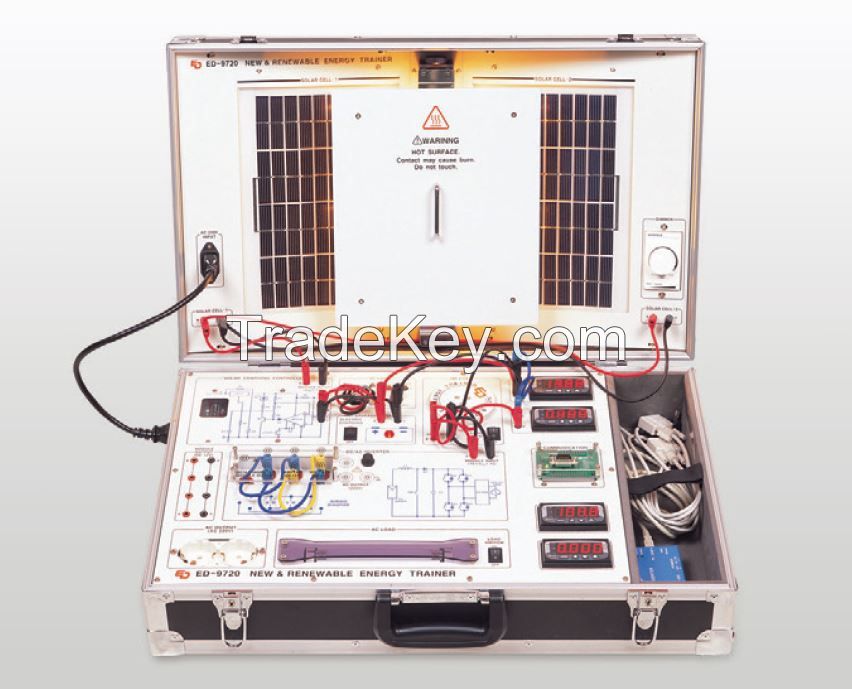

RENEWABLE ENERGY TRAINING SYSTEM (MODEL: ED****0)
> FEATURES
• Conversion experiments on the produced energy(power
production/processing)
• Characteristics of Solar Cell modules voltage and current
• Alarm beep for wrong wire placement
• Voltmeter and ammeter as included for measuring AC and DC
• Control by PC and waveform and graph output
> EXPERIMENTS
• Understanding of the solar cell energy
• Photo electricity simulation
• Ohms Law and voltmeter/ammeter
• Characteristics of solar cell(Isc, Voc)
• Light sources intensity and shadow
• Charge using the solar cell
• AC/DC Inverter
• Standalone-type *2V solar cell system
• Basic Module
Energy Production Module(in upper body)
Solar Cell Panel
Rheostat, Reflection
Panel
Energy Processing Module(in lower body)
AC/DC Inverter
Charge Controller
Battery
AC/DC Tester
Communication Module
Multi RS***5 Converter
RS***5 Communication Board
• Integrated System(Option)
**0W Wind Generator Trainer(ED****2)
• Conversion experiments on the produced energy(power
production/processing)
• Characteristics of Solar Cell modules voltage and current
• Alarm beep for wrong wire placement
• Voltmeter and ammeter as included for measuring AC and DC
• Control by PC and waveform and graph output
