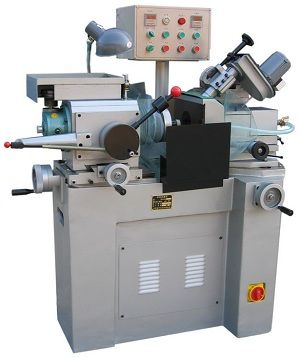

Spherical Generator

详情

Application:
For generating spherical(concave,convex) or plane surface of medium and small diameter optical element.

Technical Data:
Workpiece diameter: 5 - *0mm
Workpiece shaft stroke: **0mm
Workpiece speed: 8rpm, *8rpm
Grinding shaft speed: ***0rpm/****0rpm
Grinding shaft setting angle: 0 - *5 °
Grinding motor: 1.1KW/**0V/***0rpm
Workpiece motor: **0W/**0V/***0rpm
Pump motor: **0W/**0V/*5Lpm
Dimension: ***0****0****0mm
Weight: approx **0KG

Note: 1.SG*0A Spherical generator (with chamfering device)
           2.SG*0   Spherical generator (without chamfering device)
