The glass fiber geogrid is an excellent composite material used for road reinforcement and soft
soil foundation improvement.It has become an indispensable material in treatment of reflection
crack on asphalt road surface.the product is a semi-rigid mesh base made from high-strength alkaline
free glass fiber through international advanced process and subjected to surface
coating.It has a high tensile strength and a lower elongation both vertically and horizontally.
Moreover,it has good resistance to high and low temperature,aging and corrosion.It is widely
used in asphalt wall,ailway foundation,dike slope,runway and sand harnessing.
Properties:
1.High tensile strength in warp and weft directions
2.Low stretch rate
3.Excellent temperature range adaptability
4.Has excellent UV, alkali and oxidation resistance, which result in exceptional aging properties.
5.Light weight, good flexibility.
6.Heat-resistance, high modulus
7.Anti-erosion, long lifetime
8.Good physical and chemical stability and good thermal stability.
9.Resistant to fatigue cracking, high-temperature track and low temperature shrinkage cracking.
10. Delaying and decreasing crack reflection.
Application :
1. Maintenance of old asphalt road reinforcement of asphalt pavement.
2. Converting old cement concrete road into composite road.
3. Restraining reflection cracking caused by block shrinkage.
4. Preventing and controlling the cracking caused by new and old combination and uneven settlement.
5. Road extension.
6. Reinforcement of soft soil foundation and overall strength of roadbed

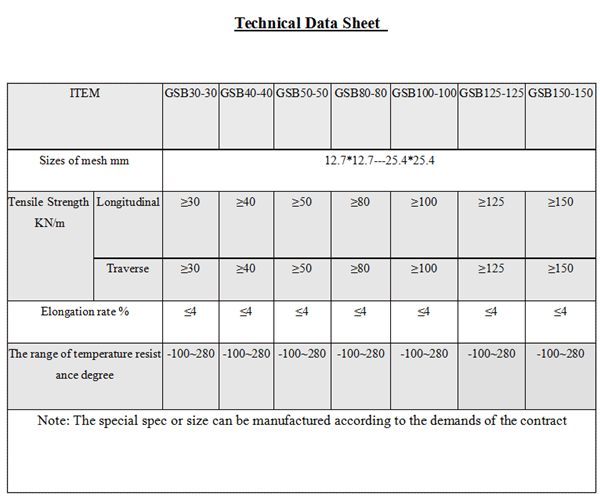

Technical Data:
Size : width<
=6.0m length 50-100m( or at request )
Production Line
There are hundreds of various professional technical staff ,
tens of world advanced Computer numerical control production lines .
Quality Control
In our production process ,raw material and ready products
Are checked in different parameters in our in house
quality testing center ,and we have passed ISO9001& ISO14001
