Metal case 11n 300mbps wifi wireless router support
openwrt/dd-wrt/tomato firmware flash 16MB ddr2 memory 128MB
mt7620a.
Item specifics
With Modem Function: No
Products Status: Stock
WAN Ports: 1
Package: Yes
Wi-Fi Transmission Standard: 802.11n
Supports WDS: No
Supports WPS: Yes
Firewall: Yes
Application: Enterprise
LAN Ports: 4
Max. LAN Data Rate: 300Mbs
Wireless: Wireless
Type: Wireless
Wi-Fi Transmission Rate: 300 Mbps
Standards And Protocols: Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi
802.11n
VPN: No
Function: Firewall
Number of USB Interfaces: 1
Wi-Fi Supported Frequency: 2.4G
Wired Transfer Rate: 10/100Mbps
Model Number: None
Brand Name: DIY
Wi-Fi Transmission Speed: 300Mbps
Product: wireless router openwrt
Flash: 16MB SPI
Memory: 128MB DDR2
Chipset: MT7620A
Antenna: 2*5dBi detachable
Housing: Metal case
Support: Openwrt
Wifi connections: 30 users
OEM: YES
Product Description

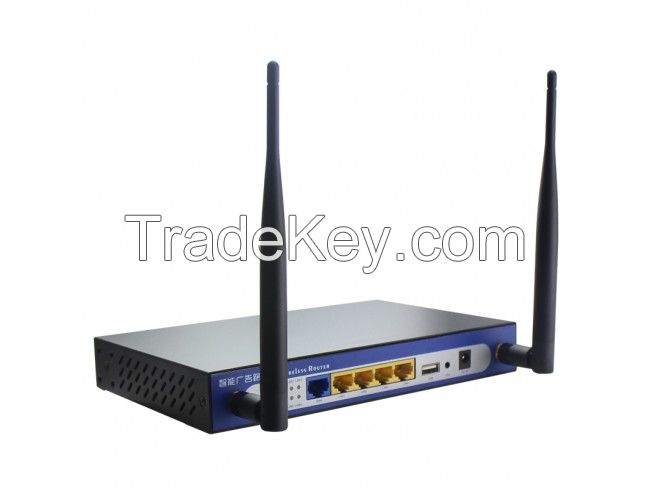

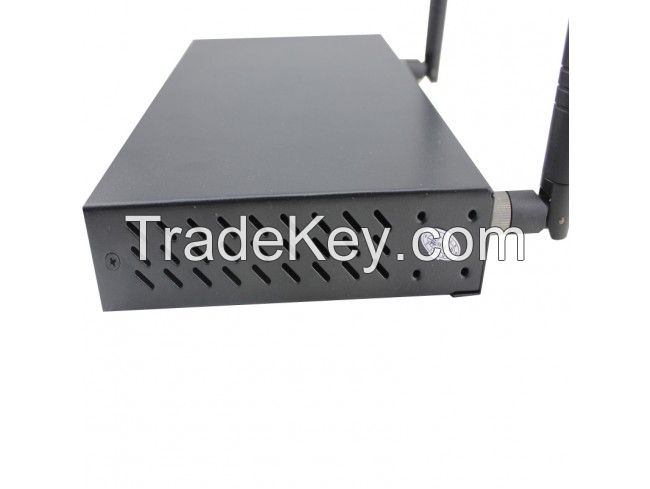

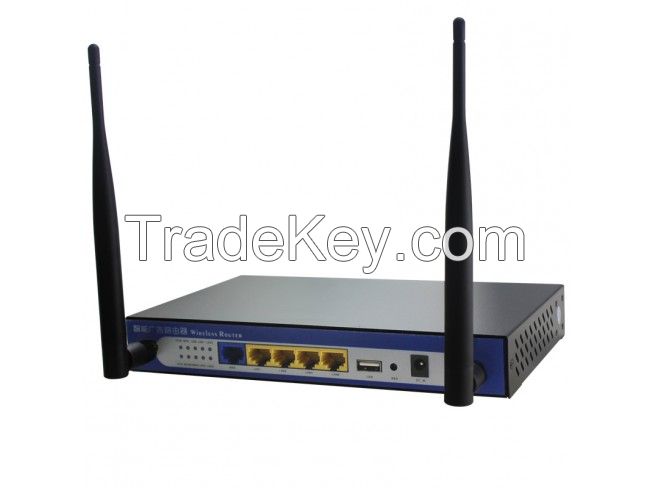

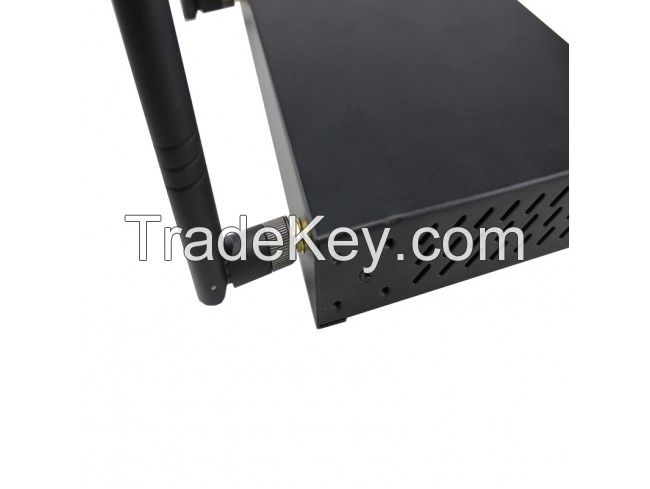

Metal case 11n 300mbps wifi wireless router support
openwrt/dd-wrt/tomato firmware flash 16MB ddr2 memory 128MB
mt7620
Please note:in fact this router is 128RAM.some openwrt firmware
show it\'s 64M RAM,sorry we can\'t repair this debug.If you do not
agree this problem,please do not order it .we don\'t accept dispute
if you open dispute because of software system Flash and Ram
problem. Thanks in advance : )
Key Features
Dual 5dBi detachable antennas 300Mbps openWRT/dd-wrt
Router
1),WiFi 300Mbps
2),MT7620A chipset
3),Support PPPoE,DHCP,Static IP broadband
4),Support UPnP,DDNS,VPN Pass-through
5),Can load 50units terminals online
6),support openwrt
7),16MB flash 128MB RAM
PL-WR300-B1 is MT7620A chipset based wifi router, wireless speed
upto 300Mbps wtih two external 5dBi antenna output strong signal
and wide coverage area. It provides a simple configuration
interface enables users configure very easy. PL-WR300-B1 fully
complies with IEEE 802.11n wifi standard and compatible with all
IEEE 802.11b/g/n standard devices.
PL-WR300-B1 with QoS function capable efficiently distribute the
downloading rate for the clients. Additionally, with super
compatibility, the router can break the access limits in some areas
so that multiple computers can share the Internet access. Whats
more, the device integrates the functions of router, Wifi AP,
four-port switch and firewall.
Support PPPoE,Dynamic IP,and static IP broadband functions
Support UPnP,DDNS,static routing,VPN Pass-through
Support virtual server,special application and DMZ host
Support SSID broadcast control and MAC access control list
Supports 64/128/152-bit WEP,complies 128 bit WPA (TKIP/AES)
Support MIC,IV Expansion,shared Key Authentication, IEEE 802.1X
Built-in firewall features IP,MAC,URL filtering
Built-in DHCP server with automatic dynamic IP address
distribution
User interface supports free WEB software update
Support openWRT/dd-wrt/tomato os
Specifications
MCU
MT7620A
RF
2T2R
Memory
128MB DDR2 RAM
Flash
16MB SPI
Interface
4 x RJ-45 for 10/100 Mbps LAN ports
1 x USB2.0 Port
1 x RJ-45 for 10/100 Mbps WAN ports
1 x Reset button( renew system or restore sys to factory
defaults)
1 x Power DC Jack
Power
5v 2a/12v 1a etc power adapter
Frequency
802.11b/g/n
2.4~2.4835GHz
U.S.,Europe and Japan product covering 2.400 to 2.4835
GHz,programmable for different country regulations
Modulation
OFDM = BPSK,QPSK, 16-QAM, 64-QAM
DSSS = DBPSK, DQPSK, CCK
Throughput
300 Mbps
Sensitivity
802.11n(2.4GHz)
802.11g
802.11b
-83dBm @ MCS0/8
- 87dBm @ 6Mbps
- 92dBm @ 1Mbps
-78dBm @ MCS2/10
- 76dBm @ 36Mbps
- 88dBm @ 5.5Mbps
-67dBm @ MCS5/13
- 70dBm @ 54Mbps
- 85dBm @ 11Mbps
-65dBm @ MCS7/15
Output Power
Radio1(WLAN1)
802.11n(2.4GHz)(± 1.0dBm)
802.11g(± 1.0dBm)
802.11b(± 1.0dBm)
16dBm @ MCS0~2/MCS8~10
16dBm @ 6~24Mbps
16dBm @ 1~11Mbps
16dBm @ MCS3/MCS11
16dBm @ 36Mbps
16dBm @ MCS4/MCS12
16dBm @ 48Mbps
16dBm @ MCS5/MCS13
16dBm @ 54Mbps
16dBm @ MCS6/MCS14
16dBm @ MCS7/MCS15
Antenna
2 x 5dBi Omni ANT
Packing
1*OpenWRT/DD-wrt WiFi Router
1*5v 2a/12v 1a Power supply
