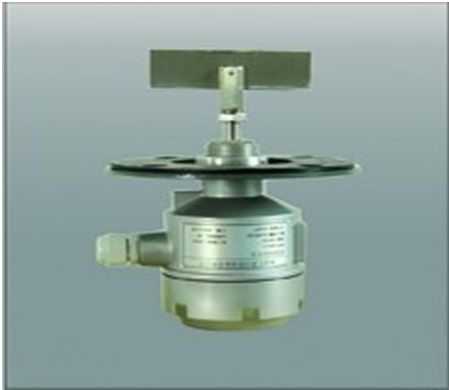

Damped Rotation Level Indicator

详情

Damped Rotation Level Indicator is usually installed at the top of the silo wall, middle or bottom to measure the electrical signal via rotation movement. When there is an abnormal material level, the vane blocked by materials is unable to rotate; thus, it makes synchronous motor to stop rotating and triggers micro switch to change the current indicatory status. Once the material level drops below the range of vane rotation, the indicator will start to rotate and trigger other indicatory components.



Characteristics:

1. Imported high-quality motor, reliability in performance

2. Motor is equipped and protected by clutch device.

3. Double shaft sealed protection with a IP*5 protection grade

4. Completely stainless steel rotary axis and vane, away from rust

5. Multiple specifications including high and low in working temperature, elongated length and various vanes

6. Usually used together with sound and light alarm device as well as material inlet valve in order to make sure the safety of the silos.
