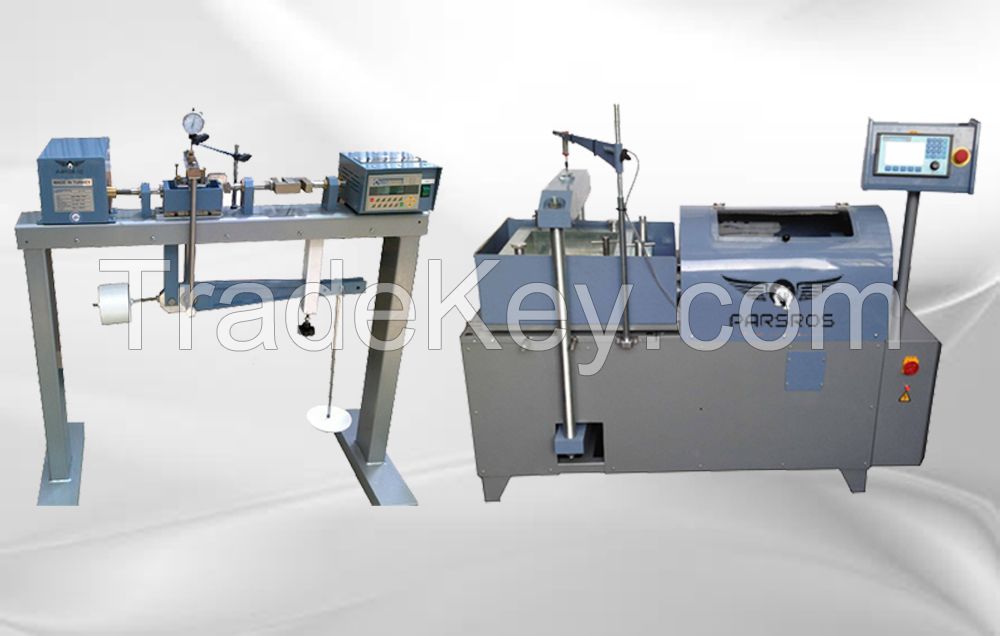

High Capacity Direct Shear Testing Machine Automatic

详情

High Capacity Direct Shear Testing Machine Automatic

STANDARTS : ASTM D ***0, TS *****2, BS *****7, AASHTO T**6, NF P**4 ****1/2

 It can be used for samples such as *0 cm x *0 cm x *5 cm . (Cut box optionally be produced in a suitable size.)

Horizontal and vertical loads are given fully automatically via stepper motor.

Cutting speed of 0.**9.*9 mm / min. Among through digital  control unit can be selected fully automatically.

Shear load and vertical load of *0 tons (**0 kN) is capable of applying.

Horizontal and vertical loads on horizontal movements through the data acquisition unit, all calculations are done through software.

Shear box cell is made of stainless metal.

Test frame, the engine is combined with body and stand.

Digital control unit is designed for easy use.

The unit is fully automatic.

Optionally with the device under any load carried out sample consolidated by cutting.


Direct Shear Test Machine

STANDARDS : TS *****2,ASTM D***0,BS *****7,AASHTO T**6,NF P**4 ****1/2





The System is capable of performing the consolidation and shearing phases of a standard direct shear and residual shear test under full automatic control.

The system consists of a computer-controlled unit that utilizes micro-stepper motors to apply the vertical and horizontal loads to the soil specimen. The system is capable of doing a consolidation process at *2 phase   automatically.

 Horizontal shearing can be applied at a specified rate of deformation or at a specified rate of horizontal force change, or at a specified set of force steps of a specified duration.

 The system is capable of displaying the current status of a test and graphically portraying the progress of the test in real time. The system includes the capability for the operator to alter the test process and conditions at any stage of the test.

Capacity is   2.5, 5, or *0 kN
VERTICAL Engine Stepper engine  with built-in controls for vertical load
Horizontal engine stepper motor with built-in controls for horizontal load
SPEED RANGE 0.****3 to *5 mm per min.
HORIZONTAL TRAVEL ***5 mm
VERTICAL TRAVEL *2.5 mm
Power supply: ******0 V 1 ph *0 Hz **0 W
Dimensions: **8 x **0 x **2 mm
Weight: *3 Kg
