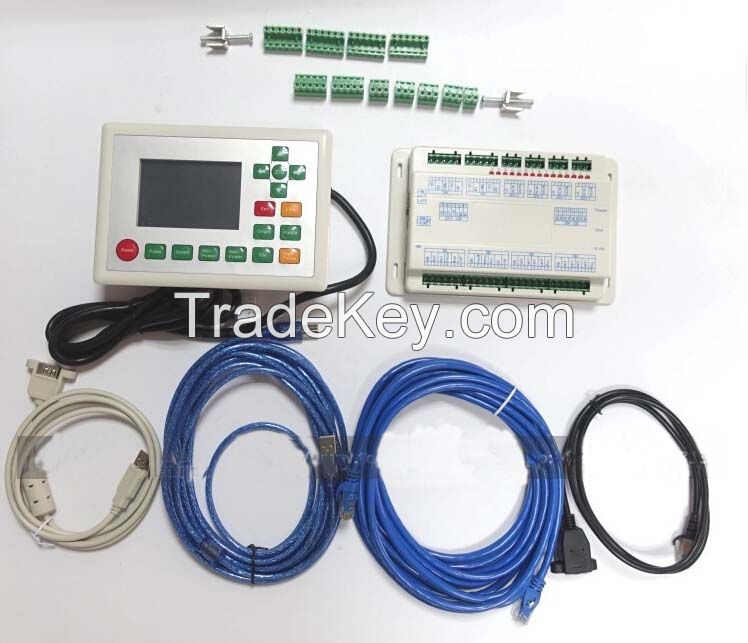

CO2 Laser Machine Parts RUIDA New Version Controller RDC***2 for Sale


Main Feature:

RDC***2G system is a new generation system for control of laser engraving and cutting, which is developed by RD technology, Ltd.

High hardware stability, high voltage or static electricity rejection, and friendly 3.5TFT man-machine display.

This system is provided with stronger software function including perfect *-axis motion control function, large-capacity file storage, two-channel adjustable digits laser power control interface, USB driver of stronger compatibility, multi-channel general/special IO control, and, this system can communicate with PC by USB2.0 or Ethernet, and the communication mode is automatically checked by the system.

• Digital laser control signals:

(1) TTL level output, *0 mA, drive capability(can set enable signal polarity in software)
(2) PWM frequency 2K**0K for adjustable
(3) PWM duty ratio is 1% ~ *9%, adjustable
(4) PWM value is up to 5.0 V

• Motor control signal: common-anode output, drive capability *0 mA. Motor control pulse frequency: Max.**0KHZ
• USB: Max. transmission rate *2M bps; The longest distance is 5 meters.
• Network: Max. transmission rate is**0M; Max. transmission distance is **0M.
• Interpolation: Linear/circular arc/B spline, accuracy + / - 0.5 pulse
• Output: *-channel, photoelectric isolated OC gate output, the max. drive capability **0mA drive capability (with follow-current protection).
• Input:*-channel, photoelectric isolated input, compatible with 5V/ *2V / *4V logic level

Specification:

Product Model : RDC***2G

                      6: the sixth generation controller

                      4: controller version

                      4: *-axis

                      X: displayer type (1: TTF; 2:3.5 inch colorful screen; 3: 5.7 inch colorful screen; 4:7 inch touch screen)

                     G: standard

Application area: laser cutting, laser engraving, laser welding etc.

Power:**4V, >2A

Temperature: 0~*0 °, humidity is not greater than *0%
