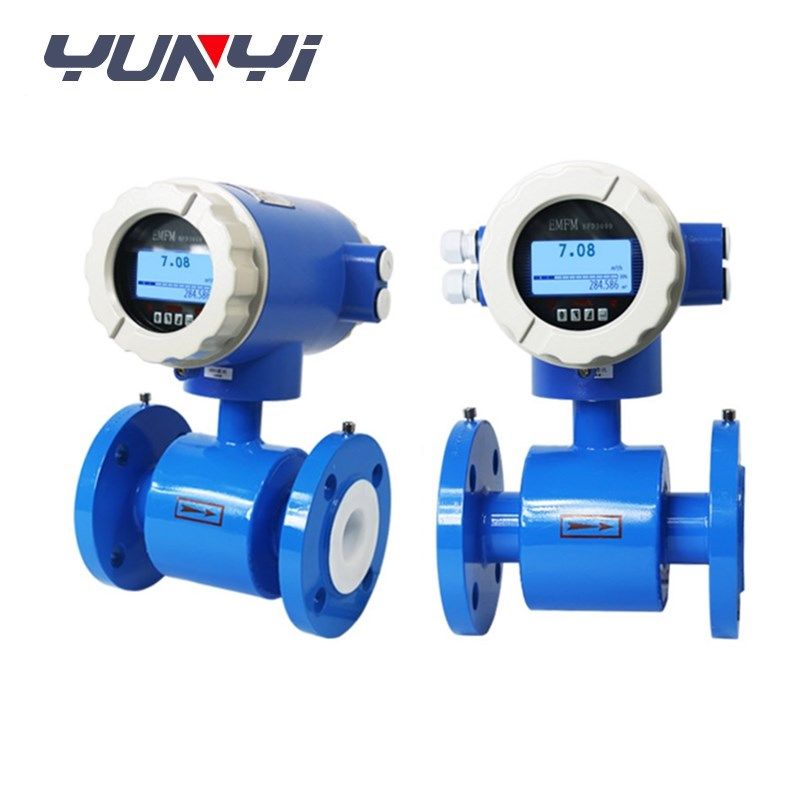

Description electromagnetic water flow meter transmitter
Intelligent electromagnetic flowmeter consists of two parts, the
sensor and converter. It is based on the work of Faraday's law of
electromagnetic induction, used to measure the conductivity is
greater than 5μS / cm conductive liquid volumetric flow rate, is a
measure of the volume flow of conductive medium for induction
meter. In addition to measure the volume flow of conductive liquid,
it can also be used to measure the volume of a homogeneous
liquid-solid two-phase flow of a liquid suspension of acid and
alkali and other strong corrosive liquids and slurries, pulp and
paper pulp.
Widely used in flow measurement of petroleum, chemical, metallurgy,
textile, paper, environmental protection, food and other industrial
and municipal administration, water conservancy construction, river
dredging and other fields.
Specification;
Nominal diameter：DN*-DN***0
·Nominal pressure：0.6 ～ 4.0MPa (special pressure can be
customized)
·Accuracy：± 0.5%(DN6 — DN**0) ;± 1.0%(DN**0 — DN***0)
·Measure range：0 ～ *2m/s
·Medium electrical conductivity： > *0 μs/cm
·Medium temp：**0℃ ～ **0℃
·Ambient temperature：**5℃ ～ *0℃
·Environment humidity：≤ *5% (Relative humidity)
·Power supply：Battery-powered electromagnetic flow meter has a
built-in
3.6V lithium battery, continuous working time is more than 5
years.
·Electrode material：**6LSS、HC、HB、Titanium, tantalum, platinum /
iridium alloy
·Lining material：Neoprene, urethane rubber, PTFE, F*6, PFA
·Connection mode：Flange type, plug-in type
·Structure type：Integrated type, Split type
·Protection grade：IP*8
·Display：LCD Large-screen liquid crystal display instantaneous
flow,
forward / reverse cumulative total amount of flow and alarm.
·Output：Pulse output 0.******0m/p, can set pulse width to *0ms
(passive
optocoupler output).
·Communication: GSM wireless data remote transmission (SMS
packets).
