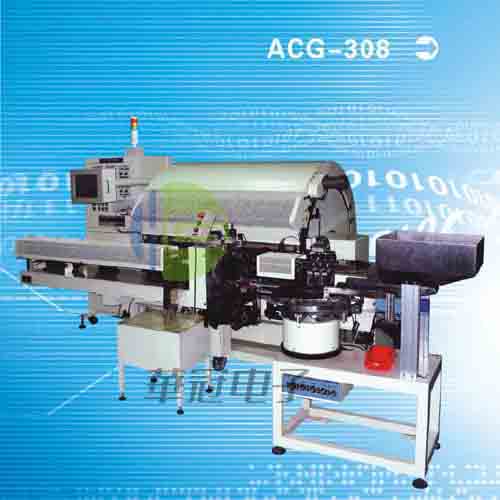

Automatic Charging-Aging-Sorting Machine

详情

SUMMERY
This is automatic specialized equipment for charging-aging-sorting the aluminum electrolytic capacitor. It puts the finished or naked products of aluminum electrolytic capacitor into the vibrating tray, then be fed automatically, semi-products of capacitor (elements) are sent to the conveying jig for aging & sorting automatically, then automatic to pick out the qualified and unqualified products into the different splice box separately. It is easy to operate and maintain.

FEATURES
It is suitable for charging and aging the general aluminum electrolytic capacitor and V-chip capacitor (Φ 3~Φ *0mm). (The price is based on different configurations for customers to choose).
Each parameter of this machine is controlled by "Solitary Excitation System" which carry it out by charging and aging each capacitor, which do not affect the aging of other products if a capacitor short circuit.
The hot-blast stove with the small floor space adopts close-roller type, which doesn't change outer temperature with heat proof and heat insulation, so that the machine only consume less than half power of that consumed by traditional way.

Electric resistance for charging and discharging is installed outside hot-blast stove; Such way keeps the electric resistance from being heated. It can guarantee quality of charging and discharging as well as improve service time of electric resistance.
Volume testing device that could be selected configuration for sorting with supercriterion, or with the standard for sorting high & low capacity.
Detection device monitors the work of operating conditions which can pre-warn and shut off in case of abnormality.
It is attached with the control system for self-commutation batch function, which can change the charging voltage automatically.
The measure parameters of capacitor can be printed out to be a list as required, which to be real to show the aging conditions of different batch of capacitors.
The PLC control system can show the performance by touching the screen. It is easy to setup and operate.

More infor. Plz contact with me. We supply it with ATTRACTIVE PRICE and HIGH EFFICIENT PRICE.
