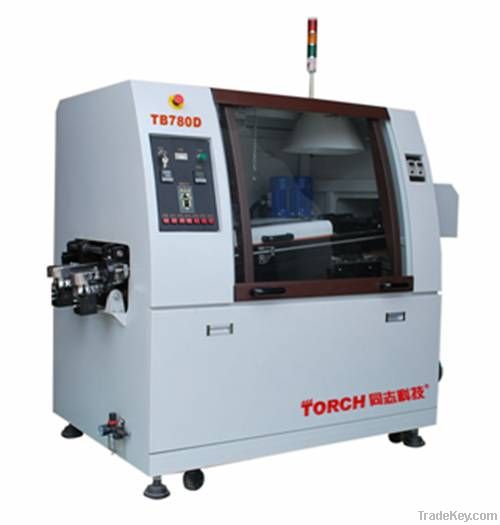

Automatic Wave Soldering Machine

详情

Features and Functions:

A.        Function of flux spray device
1. Nozzle: Import nozzle, better spray.
2. Air system: AIRTAC electromagnetism valve, anti-corrosive pipe.
3. Moving nozzle system: Driven by an air cylinder, manual adjustment of the spray speed and the spray width.
4. Filtration flux system: Collecting device is made of multi collecting lay, which is convenient to clean.
5. Flux controlling: Anti-corrosive controlling flux and display flux.

B.
Function of flux foam device
Integrated foam function and inner foam pump. There is need of an outer air supply.
1. Preheating temperature range: *8℃ - **0℃
2. Controlling way: PID controlled during welding process.
3. Heat: Infrared heating, temperature uniformity, rapid speed, PID supplies the heat.
4. Preheating security: Surface temperature is lower than fire point of flux.
5. Preheat: It can meet requirements of batch PCB welding, uniform temperature, small temperature differences of PCB.

C.
Welding system features
1. Material: **6 stainless steel
2. Capacity: **0kg double wave crest capacity
3. Height range of wave crest: 0 - 8mm adjustable, the wave crest stays balanced.
4. Power consumption (heater): 6kw, uniform heating, long life. It will take one hour to melt the tin, which can save 6kw during melting the tin and save 3kw during constant temperature.
5. Unique nozzle: Double wave crest design, with unique flat wave, which is stable and reduces leaking solder.
6. Heat controlling system: PID controlled, accuracy is ±2
7. Moving tin pot: In- and output can be finished by hand.

D.
  Cooling system
 Cooling motor: Unique cooling design, which can achieve the effect of imported device.

E.
Transmission system
1. Chain: Stainless steel chain, anti-corrosive
2. Rail system: Special strong aluminum
3. Speed: 0 - ***0mm/ min
4. Accuracy: Motor is from Taiwan, it is easy to adjust and maintain.

F.
Controlling system
1. Buttons on the panel: Manual/ automatic control, speed can be set, temperature can be displayed.
2. Protection of short circuit: Included short circuit protection with Sanling air switch protection in main power and a tin pot of preheating zone with fuse power in controlling system.
3. Urgent stop protection: The machine has 2 urgent stop protections inside for cutting off power in urgent situations.
4. The whole machine is controlled by a relay controlling.
5. Transmission speed: Taiwan motor ensures a stable speed.
6. Wave crest: Taida transducer for a flatter wave crest.
7. Over-current protection: Over-current protection with transducer, which will cut off power when current is over to safe the motor.

Technical parameter:

Solder type: Lead/ common solder
Max width of PCB: **0mm
Components height: > **0mm and < 8mm
Capacity: **0kg
Preheating length: **0mm
Temperature accuracy: +/- 2
Spray way: Foam
Temperature range: *8℃ - **0℃
Wave height: 0 - 8mm
Heating controlling: PID
Speed: 0 - 1.**0mm/min
Start power/ normal power: *2kW/ 6kW
Preheating temperature: *8℃ - **0℃
Width adjustment: Manual adjustment
Transmit angle: 3 - 8
Direction: right *-> left
Controlling accuracy: Taiwan motor
Weight: **0kg
Dimension: ***0x***0x***0mm (***0mm includingloading and cooling system)
