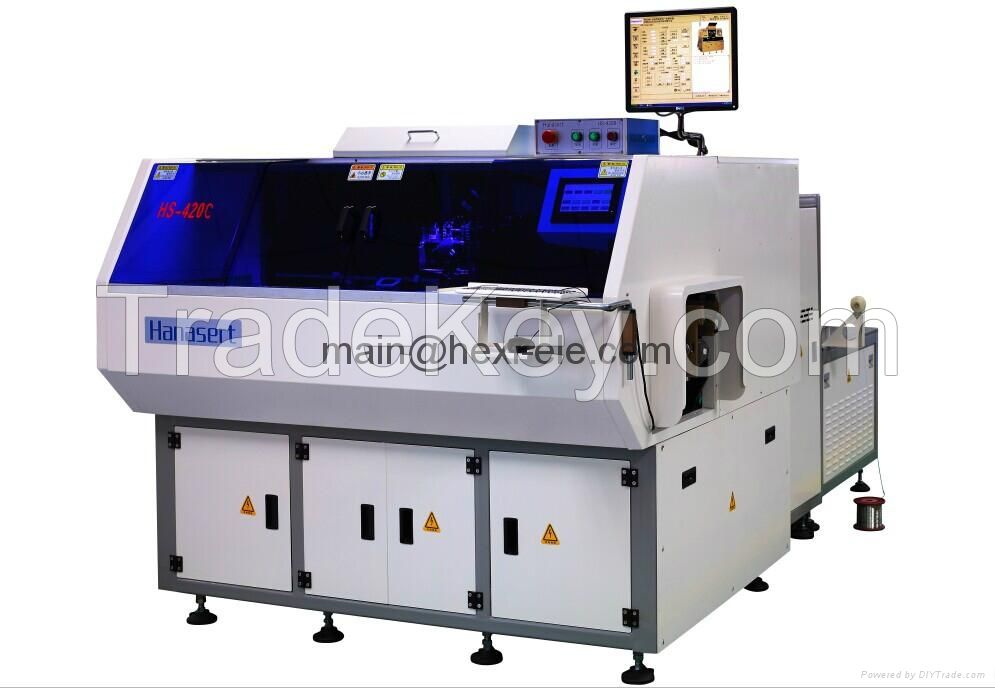

Axial components inserting machine

详情

sequence integration machine developed independently by Hexi , combined the functions of axial inserting machine and sequence machine. This machine can program various tape components and place them on the clamp of the chain according to program settings, supplying these components to inserting head.

-Chinese& English operation interface (Windows control) with LCD, make it easy to operate and maintain, improving products quality and therefore production efficiency. The machine is widely used in industries of TV, microwave, car stereo, and air conditioner. etc.

-Unique servo control system improves the speed, accuracy and reliability of running axis, decreases maintenance requirement and promotes utilization ratio and reduces the cost to repair.



Machines frame:

1. The machines frame is strongly soldered, specially processed, can avoid distortion.

2. Multi shake-free feet, reducing the vibration to great extend.



X.Y working table organization:

1. Imported accurate sliding block and ball screw, with little gap, are very durable.

2. Panasonic servo driver, with excellent stability.

3. Shifting table is specially hardened, very durable.

4. Mechanical limit and switch limit make it more reliable.



Inserting head and base:

1. Cutters are processed by CNC, with high accuracy.

2. Specially hardened, very durable.

3. Standard cutters are exchangeable with the ones of some famous machines oversea, make it easy to buy them.

4. Added component-dropping inspection function.



Electrical control:

1. Imported moving controller, with high anti-interference.

2. Panasonic servo driver to control, with accurate locating and automatic compensation function.

3. Windows 7 system.

4. All electrical components are imported, very durable.

5. Computer can find the faults, very easy to repair.



Programming:

1. Marks are located by CCD camera.

Operating interface: English and Chinese versions are available, is very simple. It can diagnose all kinds of faults.2.     The setting of all the data can replace the adjusting in mechanical section. Programming and editing are easy, shorten the time for the operator.

3.      In-line programming is available, by coordinate programming or PROTEL leading-in.

Specifications：

1、Theoretical speed：****0/h，actual working speed:****0/h

2、 Non-perform rate：less than **0PPM；

3、 Inserting direction：horizontal 0°，*0°，**0°，**0°

4、 Pitch：5.0mm**0mm

5、 PCB size：min.*0mm**0mm，max.**0mm***0mm

6、 PCB thickness：0.***2.*6mmr

7、 Applicable components：capacitor、transistor、diode、resistor、fuse, etc

8、 Wire jumping：diameter is 0.5mm*0.7mm cooper wire with tin coating.

9、Length of cutting pin：1.**2.2mm（adjustable）

*0、Component angle：****5°（adjustable）

*1、Machine dimension：***0****0****0mm

*2、Weight：**0KG

*3、Electricity：**0V, 3P AC*0/*0HZ

*4、Power：6.8 KW

*5、Air pressure：0.5Mpa*0.8 Mpa

*6、Air consumption：0.*5cbm/min.

*7、Environment temperature：***0 degree celsius

*8、Machine noise：*5DB

*9、Hole calibration：visual system

*0、Driving system：AC servo，AC motor

*1、Data ：USB（Excel form）

*2、Controlling system：Chinese& English interface（windows）with LCD.
