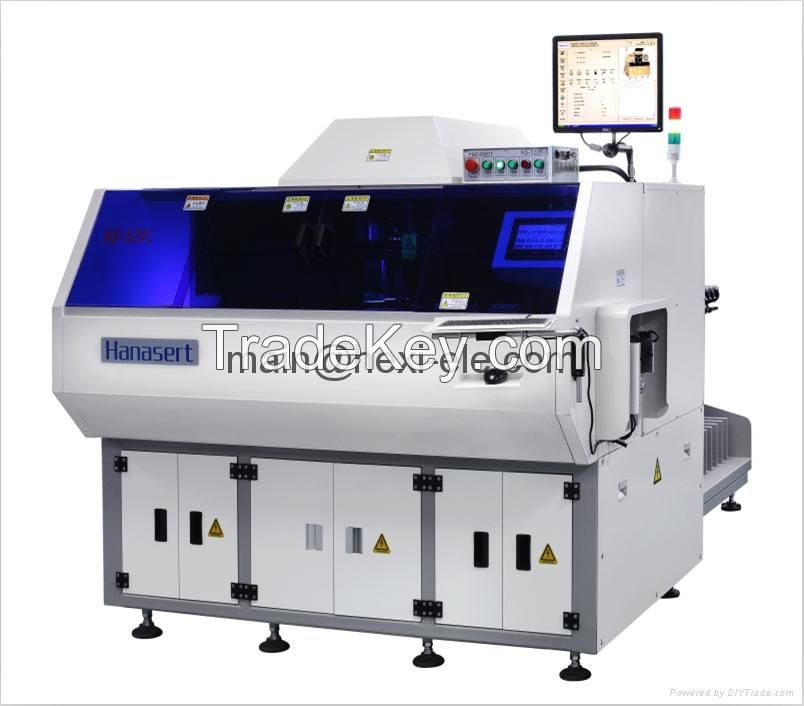

Radial components inserting machine

详情

Specification：

1、 Theoretical speed：****0/h，actual working speed:****0/h

2.   Pitch: 2.5, 5.0, 7.5 (sizes can be customized)

3、 Non-perform rate: less than **0PPM

4、 Inserting direction:*****-**0

5、 Component density：high density

6、 PCB size：min.*0mm**0mm，max.**0mm***0mm

7、 PCB thickness：0.***2.*6mm

8、 Applicable components：Capacitor、Transistor、diode、triode, LED、press-key switch、resistor、connector, wire, potentionmeters, etc.

9、 Component specification：max. height is *1mm, max .diameter is *1mm

*0、 Length of cutting pin：1.**2.0mm（adjustable）

*1、 Component angle：****5°（adjustable）

*2、 Machine size：***0****0****0mm (*0 feeders)

*3、 Weight：***0KG

*4、 Electricity：**0V，AC 3P *0/*0HZ;

*5、 Power：7.2KW

*6、 Air pressure：0.**0.8Mpa

*7、 Machine noise：*0DB

*8、 Hole calibration：visual system

*9、 Driving system：AC servo，AC motor

*0、Controlling system：Chinese &English interface（windows）with LCD.

1. Chinese &English operation interface (Windows control) with LCD, make it easy for user to learn, realizing the conversation between the machine and operator, improving products quality and therefore efficiency. The machine is widely used for LED lighting, commercial lighting, outdoor lighting and light decoration industry.

2. With unique servo control system, it can complete high-steady inserting performance, is a high-speed and high-accuracy machine.

3. With flexible performance, user can select the fittest collocation according to practical production need and optimize the productivity by using the sequent module group of extended components.

4. It is a permanently reliable and steady machine, with few defects and high-performance inserting head.

5. The durable cutters are made of solid material.

6. The inserting head is reliable, the working frequency is high and steady.



Machines frame:

1. Strong soldered machines frame, is specially processed, can avoid distortion.

2. Multi shake-free feet, reducing the vibration to great extend.



X.Y working table organization:

1. Imported accurate sliding block and ball screw, with little gap, are very durable.

2. Panasonic servo driver, with excellent stability.

3. Shifting table is specially hardened, very durable.

4. Mechanical limit and switch limit make it more reliable.

Inserting head and base:

1. Cutters are processed by CNC, with high accuracy.

2. Specially hardened, very durable.

3. Standard cutters are exchangeable with the ones of some famous machines oversea, make it easy to buy them.

4. Added component-dropping inspection function.



Electrical control:

1. Imported moving controller, with high anti-interference.

2. Panasonic servo driver to control, with accurate locating and automatic compensation function.

3. Windows 7 system.

4. All electrical components are imported, very durable.

5. Computer can find the faults, very easy to repair.

6. Feeding organ drive the clamp installed in the sliding table by cylinder, feed the components steadily and accurately, improving the inserting efficiency.

7. Panasonic servo controlling system increases the mechanical speed, accuracy and reliability.



Programming:

1.     Marks are located by CCD camera.

2.     Operating interface: English and Chinese versions are available, is very simple. It can diagnose all kinds of faults. The setting of all the data can replace the adjusting in mechanical section. Programming and editing are easy, shorten the time for the operator.

3.     In-line rails realize the function of automatic board loading& unloading, which is used during the production process, make it all mechanized.

4. Applicable components are high-density, and with various types, the pitch range is 2.5mm/5.0mm/7.5mm
