离岸价格
获取最新报价4500 USD / Set
|1 Set Minimum Order
国家:
China
型号:
5XZC-5DH
离岸价格:
4500 USD / Set 获取最新报价
位置:
-
最小订单价格:
4500 per Set
最小订单:
1 Set
包装细节:
Wooden Case Or Container
交货时间:
in 15 days after received your payment
供应能力:
50 Set per Month
付款方式:
PayPal, Western Union, D/P, D/A, L/C, T/T
產品組 :
联系人 tracy-synmecc
no.15,guangan street,changan area, Shijiazhuang, Hebei

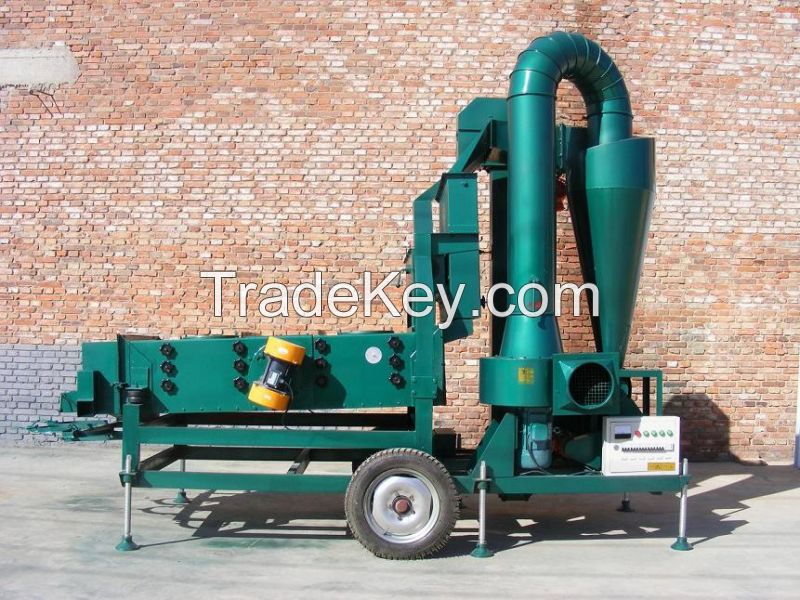

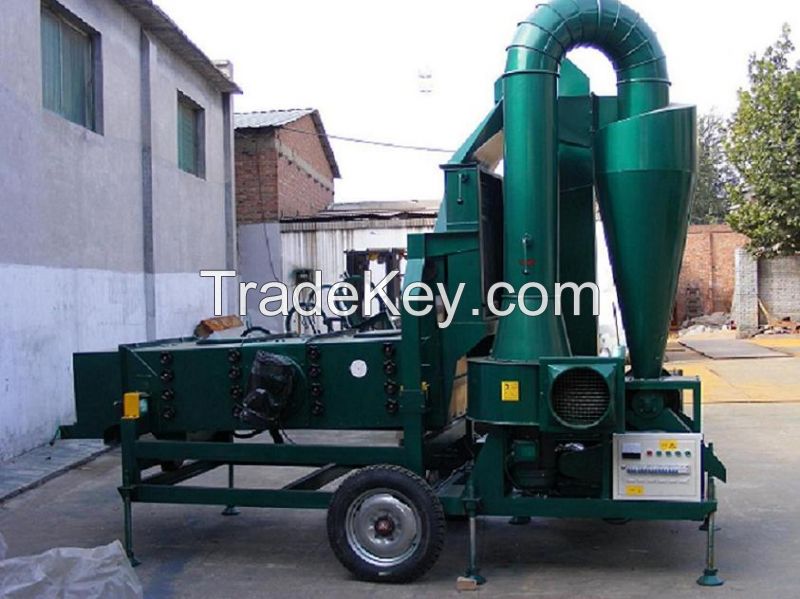

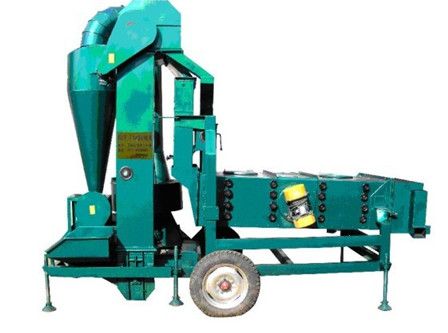

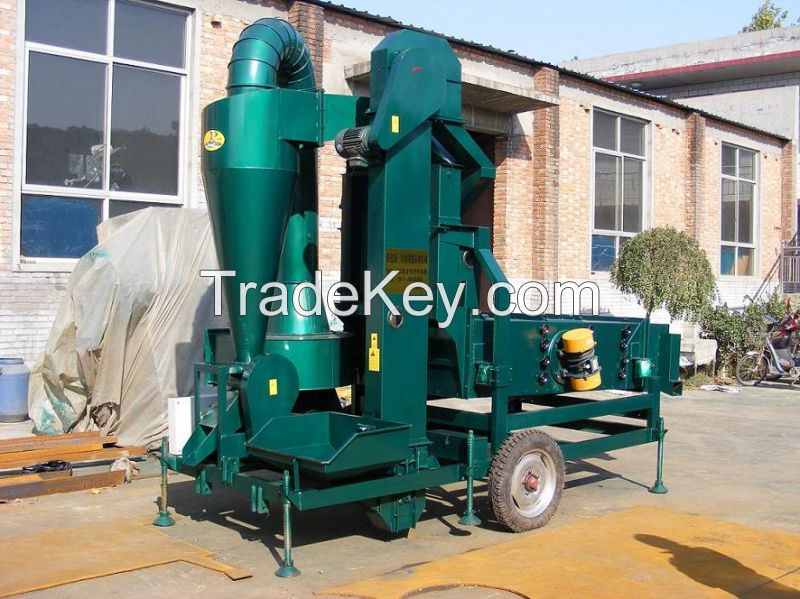

5XZC-5DH Bean Cleaning
Machine
INTRODUCTION of
5XZC-5DH Bean Cleaning Machine
Bean Cleaning Machine is used
for cleaning and grading seeds, grains, cereals, beans, species and
other granule material.
WORKING PRINCIPLE
of 5XZC-5DH Bean Cleaning Machine
After fed into
machine by bucket elevator, the dust and light impurity were
removed by air aspiration system, and then materials enter to
sieving trunk which has multi sieve layers, finally the material
was graded to different level by size, at the same time all the
oversize and undersize impurities were
removed.
FEATURES of
5XZC-5DH Bean Cleaning Machine
Customized
various sieves size and amount of sieve layer that make
the seed cleaner & grader has wide range of applications
and high grading efficiency.
Specific
cyclone dust separator protect working
environment.
SPECIFICATION of
5XZC-5DH Bean Cleaning Machine
| Model | 5XZC-3B | 5XZC-5DH | 5XZC-7.5D | 5XZC-15 |
|
Dimension (L×W×H) mm |
3970×1800×2750 | 4970×1900×3100 | 5600×2100×3200 | 5600×2100×3200 |
| Dimension of sieves mm | 1250×800 | 2000×1000 | 2400×1250 | 2400×1500 |
| Capacity kg/h | 3000 | 5000 | 7500 | 10000 |
| Weight kg | 1200 | 1600 | 1700 | 1800 |
| Power Kw | 4.25 | 7.74 | 10.1 | 10.5 |
| Remarks | Dust reducer | Cyclone dust separator | ||
| 国家: | China |
| 型号: | 5XZC-5DH |
| 离岸价格: | 4500 / Set 获取最新报价 |
| 位置: | - |
| 最小订单价格: | 4500 per Set |
| 最小订单: | 1 Set |
| 包装细节: | Wooden Case Or Container |
| 交货时间: | in 15 days after received your payment |
| 供应能力: | 50 Set per Month |
| 付款方式: | PayPal, Western Union, D/P, D/A, L/C, T/T |
| 產品組 : | Seed Cleaner & Grader |
