Blister Packing Machine

离岸价格

1 Set Minimum Order

国家:

China

型号:

DPH200 ALU-PVC

离岸价格:

位置:

最小订单价格:

最小订单:

1 Set

包装细节:

交货时间:

供应能力:

付款方式:

T/T, L/C, Western Union, PayPal

產品組 :

现在联系

Henan Chenhui Machine Co., Ltd.

China

免费会员

联系人 Ms. Kitty

Fengqing road,Jinshui, Zhengzhou, Henan

现在联系

A detailed introduction of the product:

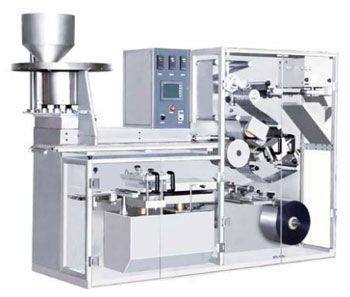

DPH200 ALU-PVC BLISTER PACKING MACHINE
Model
DPH200A Channel feeding model
DPH200B Rotary feeding model

Suitable Range
Suitable for packing capsules of any size, white pill, sugar-coat pill, irregular shape pill, chocolate, and chewing gum and so on.

Performance

1. Small size, compact structure, high production efficiency;

2. Blister formed by positive pressure blow molding, sealed by roller, Packaging finished appearance.

3. Supporting the use of general feeder, general lengthened feeder, capsule U-turned feeder and disc feeder.

4. No cross-edge scrap, save materials, Push-stepping mechanism allows smooth blisters, easy adjustment.

5. Batch number and perforation can be made.

6. PLC control, frequency control,A wide range of adjustment and low-noise.

7. Main electrical parts are famous brand, To ensure the reliability of operation.

8. Full-enclosed structure design, the material in contact with drugs is used high-quality stainless steel. Meets GMP standard.

Technical parameter

Max forming area	200 x 210mm
Max forming depth	12mm
Max cutting speed	Capsule	180-240 blisters/min
	pill	240-300 blisters/min
Max cutting stepping distance	105mm
Max forming stepping distance	200mm
Max outside diameter	PVC	��400mm
	PTP	��280mm
Max material width	210mm
Material inner diameter	70mm - 76mm
Air consumption	50 liter/min
Water consumption	3.2 liter/min
Total power	7KW
Power supply	380V 50HZ
Weight	1500Kg
Dimension (L x W x H)	2200 x 900 x 1650mm
