Block Making Machine

• Condition: New
• Type: Hollow Block Making Machine
• Brick Raw Material: Concrete/Cement/Sand/Fly Ash
• Processing: Brick Molding Machine
• Method: Vibration
• Automatic: Semi-Automatic
• Capacity: 2800PCS Per Day
• Place of Origin: Shandong, China (Mainland)
• Brand Name: Titan Globe
• Model Number: QTJ4-35A
• Voltage: 380V
• Power: 9.6Kw
• Dimension(L*W*H): 1200X1650X2000mm
• Certification: ISO/BV
• Warranty: One Year
• After-sales Service Provided: Engineers available to service machinery overseas
• Brick Type: Hollow Brick / Standard Brick
• Type No.: QTJ4-35A
• Quantity: 4PCS/Mould For 390X190X190mm
• Molding Cycle: 35S
• Working Method: Platform Vibration
• Pallet: 850X450X25mm
• Color: As Your Request
• Weight: 1.5T
• Package: Normal Exporting Packages
• Latest Delivery Time: Within 20 Days

QTJ4-35A Fly Ash Hollow Block Machines,Concrete Block Making Machine Price,Hollow Cement Brick Making Machine Sale

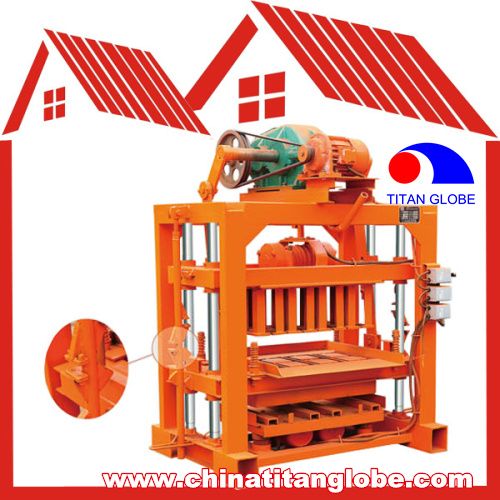

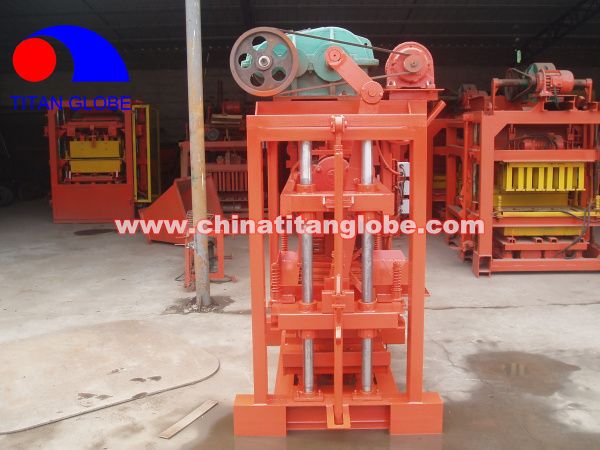

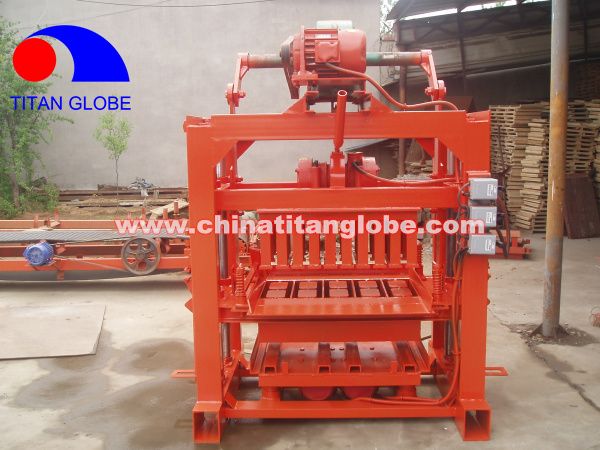

1. QTJ4-35A Block Forming Machine is one of the well sold models of our company, This machine is very easy in operating. For this machine ,a larger reductor of high quality is equipped, its key rotary parts are changed into bearings, thickened square steel frame is used and wear resisting material is adopted for its inside sleeves for directional positioning for four guiding columns so that the service life of this machine can be largely prolonged.

2. A special super strong vibrator with larger capacity is used. The block products manufactured with both pressing and vibrating forces from upper and bottom are high in density and good in strength, This machine is an ideal equipment for medium and small sized block manufacturers.

1.Main Technical Parameters

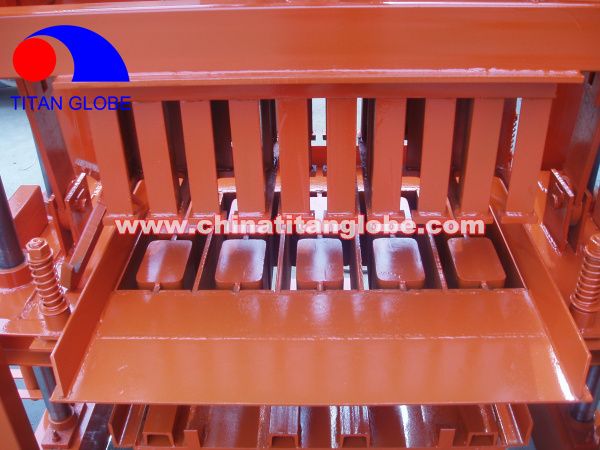

Production Quantity:390X190X190mm 4 PCS/Mould

390X150X190mm 5 PCS/Mould

Host Machine Power:9.6Kw

Forming Cycle:35S

Total Weight:1.5T

Shift Capacity:2200-2700PCS

Overall Size:1200X1650X2000mm

Carriage Size:850X450X25mm

Executive Standards:GB/T8533-2008

2. Features Of QTJ4-35A Fly Ash Hollow Block Machines,Concrete Block Making Machine Price,Hollow Cement Brick Making Machine Sale

1). Concrete block making machine is made according to our original medium and small-scale hollow block molding machine,which changes from uniaxial into biaxial, so it is more stability and anti-wear.

2). In the under model we adds a vibrator, so with bigger vibrating pressure, guaranteeing bricks with good quality, large density, and high strength.

3). Electricity push-pull mould and automatic scraping the material greatly improves the production efficiency and saves much time and effort.

4).semi-automatic brick making machine(semi-automatic means that the concrete brick making machine is operated by one worker through some handles. But all processes are finished by the machine itself.) The moulds can be customized according the demand of customers. QMY4-45(4 stands for the production of hollow blocks like 390*190*190 is 4 pieces every mould, and 45 stands for every cycle needs 45 seconds).

3.Working Pressure Of QTJ4-35A Fly Ash Hollow Block Machines,Concrete Block Making Machine Price,Hollow Cement Brick Making Machine Sale

Working Air Pressure Can Be 300Mpa,Forming Pressure Can Be 130T,Vibraton Frequency Is 2880Hz,Maximum Pressure Is 120Kn.

4.Other Informations Of QTJ4-35A Fly Ash Hollow Block Machines,Concrete Block Making Machine Price,Hollow Cement Brick Making Machine Sale

1). Area: Workshop Area: 30-50m2, All Factory Area 1000m2, Bigger Is Better.

2). Workers:3-4

3). Ratio Of Raw Material:Cement 8%-10% Sand 30%-40% Stone:50%-60%,About Cement :Sand : Stone is1:4:5.

4). Hollow Block Weight:(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG

5). Raw Material Consumption Per Day:30-40T

6). Water Consumption Per Day:3%-5% Of Raw Materials Weight.

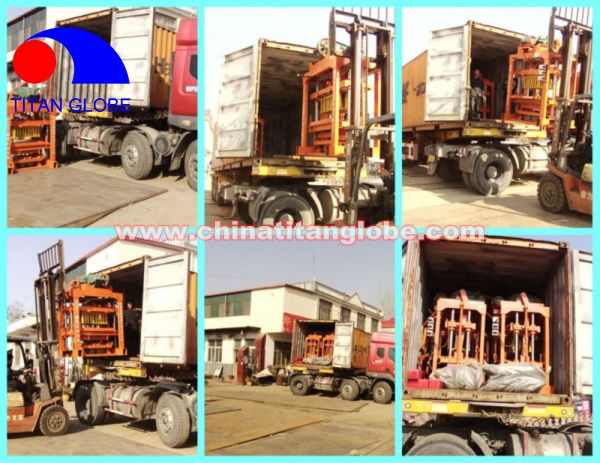

Packing Way: Suitable And Strong For Sea Transportation;

Latest Delivert Date:Within 20 Days Upon The Receipt Of Down Payment.

• One year guarantee for the whole machine;
• After one year,To maintain the machine and the accessories withcost price;
• Engineer available toequipment installation and debugging overseas;
• To train the operator and mechanic.
• To design the production line, workshop and provide turn-key project.

If you have any demands on our products,please contact us at any time,thanks!
