Brick machine

详情

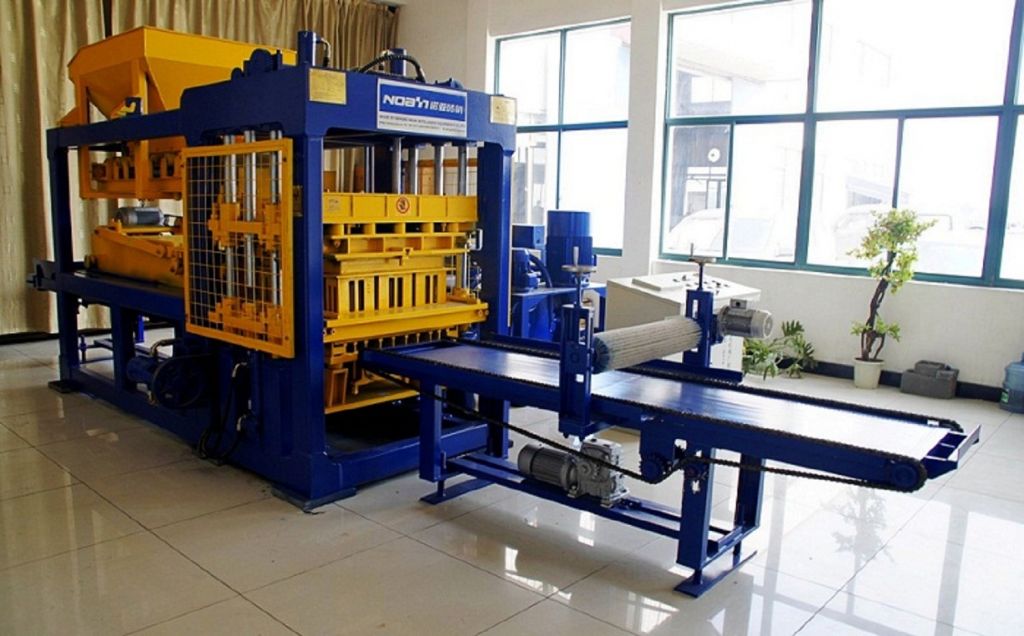

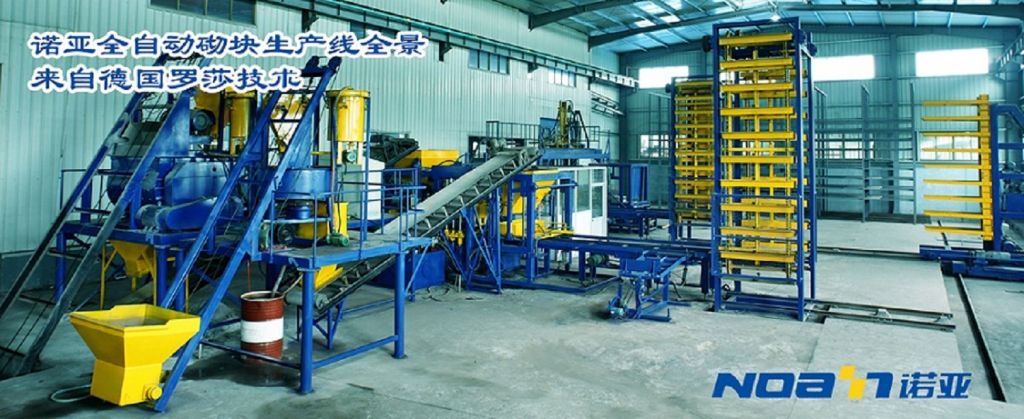

The Block Making Machine with Fully Automatic Production Line can realize the fully automatic production process from material batching, mixing, forming, drying and stacking, and its working principle is as follows:
1. The wheel loader feeds the course materials such as sand, gravel to the batching machine, which will be weighed by the electrical scale weighs;
2. The batched material will be fully automatic delivered to the mixer through belt conveyor, and the fine materials such as cement and fly-ash also will also be transferred to the mixer fully automatic by screw conveyor;
3. The mixed materials will be delivered to the hopper of the block making machine, and the material cart begins to charge material into the surface of the mould box, then the squeeze head drops down, it is by vibration and pressure to form blocks;
4. The green blocks on the pallets will move to the Elevator, the son finger cart leave the mother finger cart to take them and go back to the mother finger carts then moves back to the curing room, and put these green blocks together pallets on the fixed place in the curing room;
5. The finger carts also take the dried blocks with pallets to the lower board conveyor for the cuber to clip them to the wood rack on the finished goods conveyor, then we take the dried blocks from the finished goods yard with forklift, and the empty pallet on the lower board conveyor will come back to the pallet storage for the next production.
