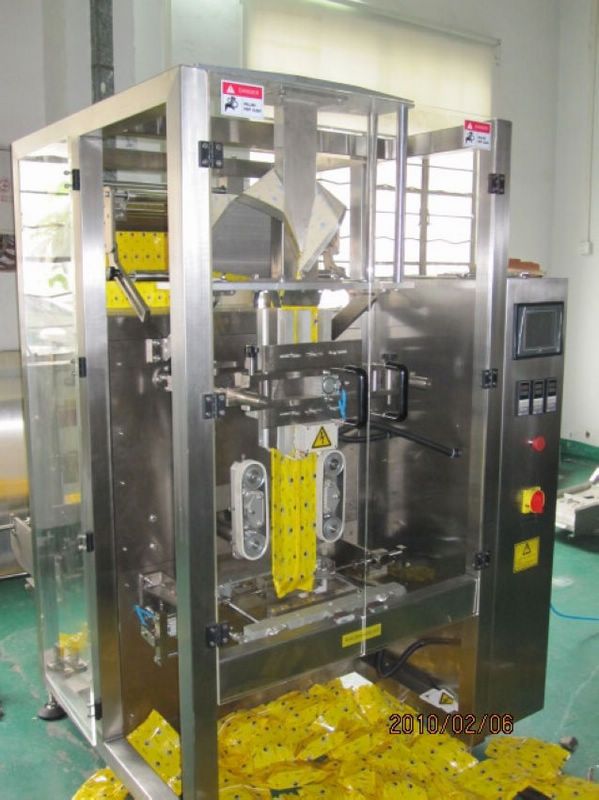

Box Type Bag Packing Machine

详情

Product Description

Suit for automatic powder materail Packaging. Such as: Milk powder, coffee powder, ice. Stabilo bag shape

Application:

The unit of machine is suit for automatic weighing, filling and packaging powder materail such as: Milk powder, coffee powder, ice cream powder, Jice powder etc. It can making box type bag and bag shape is very attractive.

KS***0T Packaging machine KS- Auger filler

Machine fully controlled by Siemens or Omron PLC & Touch-Screen Servo motor control auger filling

Minute capacity can automaticlly display on Touch screen Can be detached for easy clean

Film transport system and horizontal Jaw motion both drived by Panasonic servo motor Simple and compact in design

Safe quick change of tube and collar by just pull out the braket All stainless steel product contact parts. Non-contact parts are stainless steel and aluminum

Optoelectronics detect film position on collar to correct film excursion

Electrical photo sensor inducting color code to contol bag length

Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting

Independent temperature adjustment& code printing

Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine.

Can euqiped with hole punching system to puch hole on the bag for handling.

Technical Specification:

Bag type Box type bag /Stabilo bag

( can do both with or without back seal )

Weigthing Capacity **2kg (depend on product characteristics )

Weighing accuracy ± 0.2% dependant on products characteristics

Speed ****0bags/min

Bag size Front width **0 to **0mm (4 to 9.5in)

Side width *0 to **0mm (2.0 to 5in)

Length **0 to **0mm (4 to *6.6in)

Reel Film Width ≤ **0mm (*1.3in)

Film thickness 0.***0.*2mm (*****0mic. )

Reel Outer Dia. **0mm (*5.8in)

Reel Inner Dia. *5mm (2.9in)

Voltage AC**0V/*0Hz, 1phase or Per customer specification

Power Consumption KS***0T Packaging machine 3KW

KS- Auger filler 1.2KW

Compressed Air Requirement 0.6 Mpa 0.*6 M3min

Machine Size VFS**0 Packaging machine L***0 X W***0 X H***0; (in): L*5.1 X W*1.2 X H*0.9
