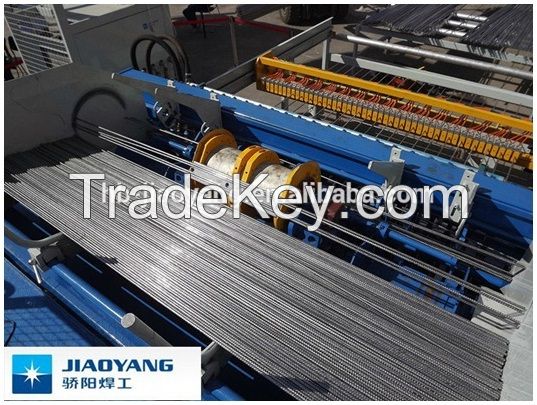

1.mesh machine for production building grid
2.wire welder
3.wire dia:3-8mm
4.width:2500mm
5.Control system:PLC
mesh machine for production building grid
1. Function features:
1). This kind machine is our latest developed reinforcing mesh welding machine.
2). The line wire and the weft wire are pre-straight and pre-cut. The line wire is feeding by theservo motor, pulling the wire net by the servo motor automatically.
3). The welding power comes from the spring. It is easy to control the welding pressure.
4). The weft wire feeding from the multi hopper which capacity is 1.5t, more over ten times than the traditional hopper.

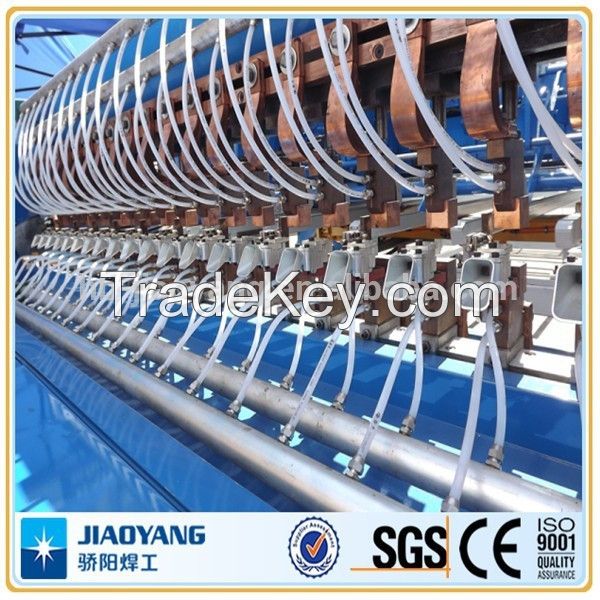

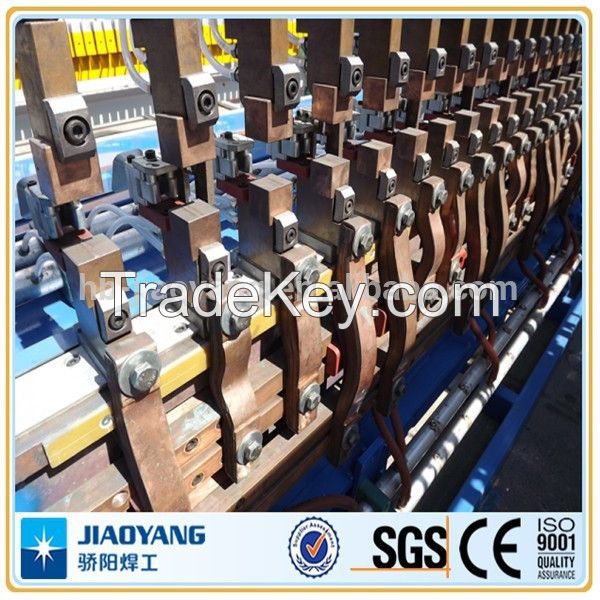

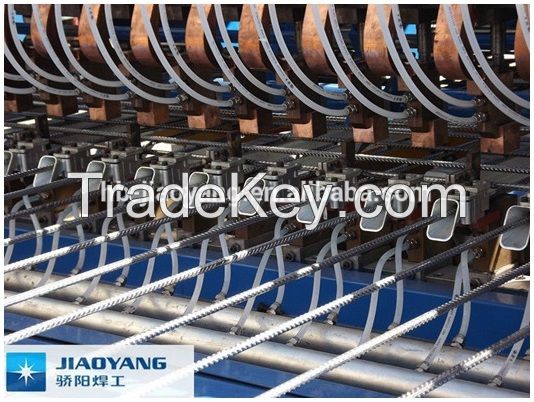

5). The new machine added the bear wire net and carries equipment that makes the working
more convenience. The welding part is used the springiness wire trunking that makes
the welding copper use for long time.
6). 125KVA Transformer with water cooling system and separately welding controller.
7). This machine adopts synchronous control technique.
The center-control and welding time are composed of PLC program system.
The front-panel is touch screen, the operation is more intelligent and reasonable.
2. Main technical parameters:
|
Model: |
GWC-2500E |
GWC-3000E |
|
|
Diameter |
3-8mm |
3-8mm |
|
|
Mesh Width |
2500mm |
3000mm |
|
|
Electrode Number |
48 |
30 |
|
|
Transformer |
8*125KVA |
10*125KVA |
|
|
Voltage |
380V, 50HZ,3 phase(customized) |
||
|
Line Wire Distance |
50~200mm |
||
|
Cross Wire Distance |
50~200mm |
||
|
Max length of wire mesh |
6m (customized) |
||
|
Welding speed |
0-50times/min
|
||
|
Line wire and cross wire form |
Pre-straightened and pre-cut |
||
|
Feeding hopper capacity |
1.5T |
||
|
Welding voltage |
Welding voltage can be adjusted through the on the front plate when welding different wire diameter |
||
|
Material |
low carbon steel wire, galvanized wire,rolled ribbed steel wire, cold or hot rolled round steel wire.
|
||

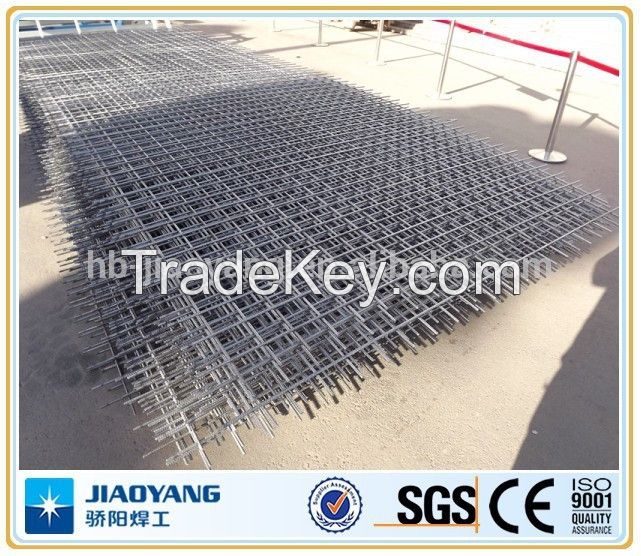

Finished mesh

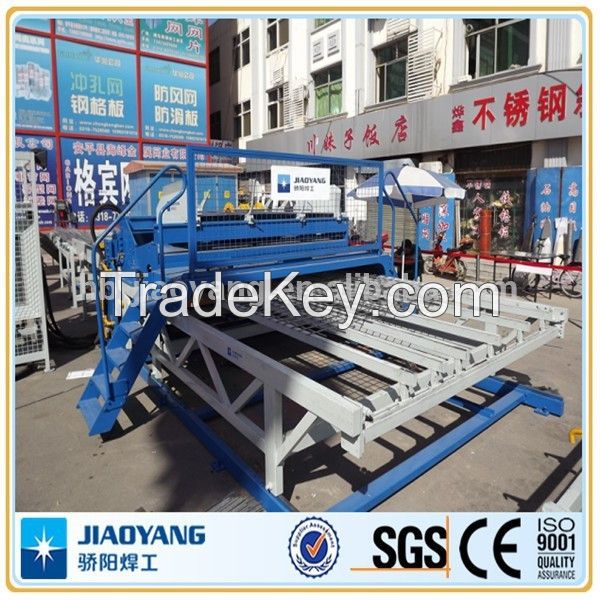

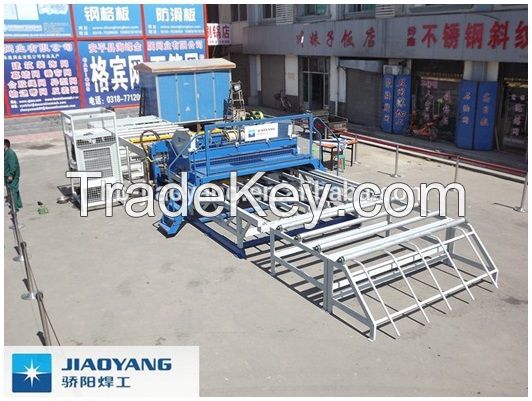

mesh machine for production building grid was shown on Anping wire mesh fair in 2011
