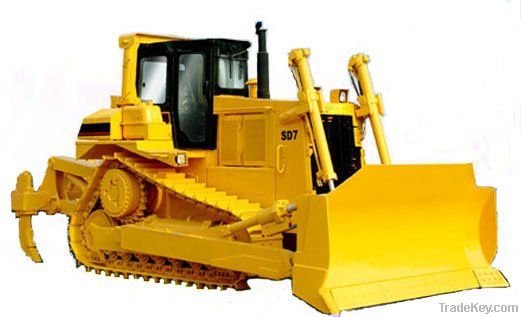

BULLDOZER



Main specifications

Operating weight(not including ripper)        ****0

Ripper weight                            ***0

Engine flywheel power                    **9(**0HP)k

Ground pressure(without ripper)            *1.9kPa

Ground clearance                        **4mm

Ground contact length                     ***0mm

Track center distance                      ***0mm

Overall dimensions(L×W×H)    (with single shank ripper)        ***4×***0×***2(with straight tilting blade)

Grade ability                            Latitude*0 °   Transverse *5°

Theory travel speed    (km/h)

1st gear forward **3.9                      1st  gear backward **4.8

2nd gear forward **6.5                      2nd gear backward **8.2

3rd gear forward ***0.9                     3rd gear backward ***3.2

Dozing operation rate(moving distance *0m)    **0m3/h

Diesel  engine  specifications

Model                      SHANGCHAI  C***1 Under Caterpillar license

Type                      water cooled, single line, vertical, four strokes, turbocharged, *-cylinders, diameter **0mm

Rated speed                ***0 RPM

Flywheel  power(speed at ***0 rpm)     **9 kW

Starting mode               *4V electric starting

Torque converter

Torque converter used in SD7 bulldozer is power separating hydraulic-mechanic type.

Transmission assembly

It integrates center drive, transmission and speed changing control valve into one component. It can be assembled or disassembled as a assembly or as a part. It is very convenient to service. Transmission is multi-stage planetary gear drive to realize modular assembling and disassembling. The shift can be changed among 1st gear, 2nd gear, 3rd gear forward or reverse rapidly, through multi-functional control valve.

Steering and braking clutch

Steering clutch and braking clutch are adjustment free, oil-type , multi-disc clutch. The braking clutch is pressed by spring, separated hydraulically, constant meshed type. Steering clutch is hydraulic pressed, non-constant engaged clutch. The action of steering and braking is combined, operation manually to realize steering slowly, sharply and braking. The braking of entire machine can be realized through the pedal. Parking braking rod is designed to keep the undercarriage system in braking condition when starting the engine and guarantee the machine not to slip on slope when starting the engine.

Final drive

Final drive is two-stage planetary reduction gear mechanism. It is mounted at outside of steering and braking clutch. Combined sprocket segment is very convenient for assembling, disassembling and service.

Hydraulic system of the machine

It is composed of oil pump, transmission control valve, steering and braking control valve, sequence valve, relief valve at torque converter outlet, filter and lines.

Main pump             Gear pump

Oil flow               **0L/min

Working pressure        3.1MPa

Rops cab

The cab is hexagonal thin wall box-type structure. Glass is mounted at six sides with wide viewing area. Pulling and pushing glass is installed at back side. The structure of Rop is rigid. It can protect the driver efficiently when the bulldozer is in special condition.

Implement hydraulic system

Implement hydraulic system can control lifting, lowing and tilting of the blade. It also can control lifting, lowing of the ripper. It mainly consists of oil pump, cylinder, inlet valve group diverter valve group, oil tank line and controlling parts.

Main pump                   High pressure gear pump

Oil flow                      **4L/min

System working pressure        *8.6MPa

Left and right undercarriage system

The track is triangle shape. The sprocket is elevated. There are two idlers in front and at rear of the frame and seven track roller. Recoil spring and cylinder adjuster is mounted at the undercarriage. The rear end of undercarriage frame is supported on the pivot. The front end is articulated with the equalizer bar. Choosing different undercarriage system according to different implement. The customer is required can guarantee center gravity of the machine to be at best efficient position. Choosing different width of track shoe can ensure the bulldozer developing its optimum traction efficiency.

Maintenance filling capacity

Fuel tank                            **0L

Water tank of cooling system            **8L

Camshaft box of the engine             *0L

Bevel gear case                       **0L

Implement oil tank                    **0L

Pivot lubricating tank                  *5L

Final drive                           *5L
