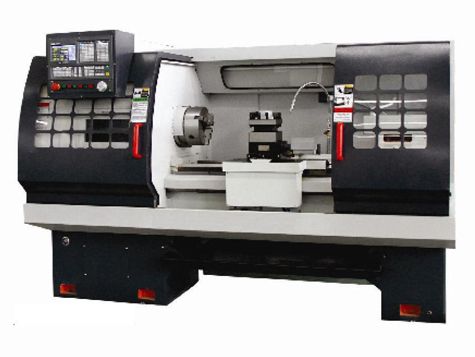

CNC Lathe

国家:

China

型号:

离岸价格:

（面議）获取最新报价

位置:

最小订单价格:

最小订单:

包装细节:

交货时间:

供应能力:

付款方式:

產品組 :

现在联系

产品规格

Brand Name : - Type : -

详情

· Dealing directly with the manufacture- no middle man!
· The most competitive pricing in the market.
· High quality control standards, such as ISO, CE
· Guaranteed delivery time.
· Prompt attention to the customer inquiries.
· Diverse services for your needs, including sourcing other machinery, inspection goods for you by our engineers, product process tracking and good.

Specifications	CAK6140	CAK6150	CAK6166	CAK6180
Max .Swing over bed	400mm	500mm	660mm	800mm
Max. Work piece Length	750/1000/1500/2000/3000mm
Spindle taper	MT6(Φ90 1:20)
Chuck size	C6 (D8)
Thru-hole of spindle	52mm(80mm)
Spindle speeds (12steps)	21-1620rpm(I 162-1620 II 66-660 III 21-210)
Tailstock center sleeve travel	150mm
Tailstock center sleeve taper	MT5
Repeatability error	0.01mm
X/Z rapid traverse	3/6m/min
Spindle motor	7.5kw
Packing dimensions(L×W×H mm) for 750	2440×1450×1700mm		2440×1450×1900mm
Packing dimensions(L×W×H mm) for 1000	2650×1450×1700mm		2650×1450×1900mm
Packing dimensions(L×W×H mm) for 1500	3150×1450×1700mm		3150×1450×1900mm
Packing dimensions(L×W×H mm) for 2000	3610×1450×1700mm		3610×1450×1900mm
Packing dimensions(L×W×H mm) for 3000	4610×1450×1700mm		4610×1450×1900mm
