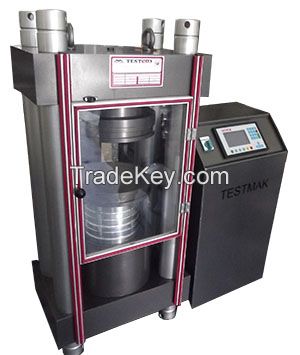

Compression Testing Machine

详情

Standards: EN ******4 | ASTM C*9 | BS ***1

General Description:

Automatic range of ***0 kN capacity Concrete compression testing machines has been designed to meet the need for reliable and consistent testing of concrete samples. All machines feature the complete automatic test cycle with a closed loop digital readout. Once the specimen parameters have been introduced, it is sufficient to press the START to complete the test. Compression machines consist of their main parts: Frame, power pack and data acquisition & digital control system . Each part has been designed to manufacture machines with a high degree of mechanical stability and complies to EN ******4; BS ***1 and ASTM C*9 standards.

Technical Specifications:

• Capacity (kN) : ***0 kN
• Calibration accuracy : Grade 1.0
• Specimen size Cube : *0 cm , *5 cm , *0 cm
• Specimen size Cylinder : *0x*0 cm , *5x*0 cm , *6x*2cm
• Platens Dim. Dia : **0 mm
• Ram travel : *0 mm
• Vertical Daylight : **0 mm
• Horizontal Daylight : **0 mm
• Weight Approx : **0 kg
• Power supply : **0 - **0 V 1 ph *0 Hz **0 W

Digital Screen Display Unit Features:

• Up to **0 Bar with the hydraulic unit to read Digital Screen Graphics display unit is located.
• Use of the pressure gauge accuracy is 0.*5%.
• Digital Screen Unit test immediately graphics, loading speed, load and stress values can be monitored, such as.
• Load-time, stress-time graphs, test reports and sample reports can be obtained.
• There are sample centering lines on the additional load table.
• Additional loading table has a fast centering system for the sample.
• Press can be connected to the computer with com port output.
• Reading unit has special graphics and touh screen and appropriate reading.
