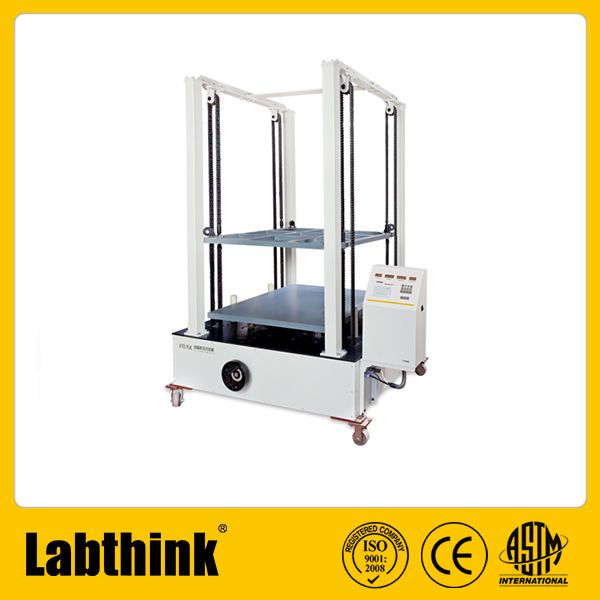

XYD*5KCompression Testing Machine China
is designed to measure the compressive resistance, deformation
and stacking capability of cartons, beehive crates, plastic tanks
(for edible oil and mineral water), paper tanks, paper cases, IBC
tanks and other packages.
1.controlled by a microcomputer with menu interface,
PVC operation panel and the testing process is automatic
2.4 testing modes: deformation under defined load,
load under defined deformation, maximum load and stack tests
3.Dynamic digitaldisplay of the test numbering and
load, specimen deformation and initial load
4.Overload protection, maximum stroke protection and
error alert for safe test operation
5.Lightweight design, suitable for various floor
loads
6.Equipped with micro printer
Technical Specifications
1.Test Range *5KN or *5KN (Optional)
2.Accuracy 1% of Reading Value
3.Force Resolution 1 daN
4.Deformation Resolution 0.1 mm
5.Test Speed 5 mm/min, *0 mm/min, *2.7 mm/min
6.Test Space 1 m(L) x 1 m(W) x 1.3 m(H)
7.Power Supply AC **0V *0Hz
8.Instrument Size 1.2 m(L) x 1.5 m(W) x 2.3 m(H)
9.Net Weight **0 kg
Compression Testing Machine China conforms to
various national and international standards:
ISO ****8, ASTM D**2, ASTM D***9,TAPPI T**4, JIS Z***2, GB/T
****1, GB/T ***7.4
| 国家: |
China |
| 型号: |
ISO 12048
|
| 离岸价格: |
（面議）
获取最新报价
|
| 位置: |
- |
| 最小订单价格: |
- |
| 最小订单: |
1 Set |
| 包装细节: |
wooden case |
| 交货时间: |
within in 2 weeks |
| 供应能力: |
- |
| 付款方式: |
L/C, T/T |
