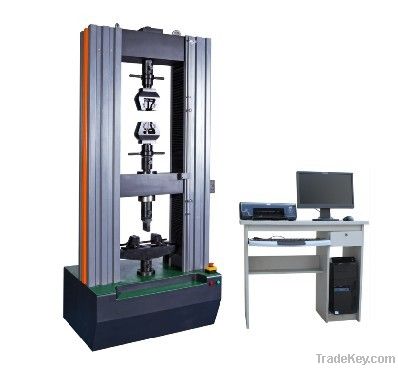

Computer Control Universal Tensile Testing Machine

详情

Application of equipment

This machine is applied in analysis and research of statics property testing of tensile, compression, bending, cutting, holding and other items of metal and nonmetal material (including composite material). It can achieveReH, ReL, Rp0.2, Fm, Rt0.5 , Rt0.6, Rt0.*5, Rt0.7、Rm, E and other testing parameters automatically and can also do test and provide data according to GB, ISO, DIN, ASTM, JIS and other international standards.

Main Technical Parameters

(1) Measurement parameters

1. Maximum test force: **0KN

2. Accuracy class: 0.5

3. Measuring range of test force: 0.4%～**0%FS（full scale）

4. Indicating error of test force: within ±0.5% of indicating value

5. Resolution of test force: ±1/*****0 of maximum test force, grade unchanged and resolution unchanged in whole process

6. Deformation measuring range: 0.2%～**0%FS

7. Deformation indicating error: within ±0.5% of indicating value

8. Resolution of deformation: 1/*****0 of maximum deformation, up to 1/*****0

9. Displacement indicating error: within ±0.5% of indicating value

*0. Resolution of displacement: 0.**5μm

（2）Control Parameters

1. Tuning range of force control rate: 0.**5～5%FS/s

2. Control accuracy of force control rate:

 When rate is less than 0.*5%FS/s, within ±2% of setting value

 When rate is no less than 0.*5%FS/s, within ±0.5% of setting value

3. Tuning range of resolution rate: 0.**5～5%FS/s

4. Control accuracy of resolution rate:

When rate is less than 0.*5%FS/s, within ±2% of setting value

When rate is no less than 0.*5%FS/s, within ±0.5% of setting value

5. Tuning range of replacement rate: 0.**1～**0mm/min

6. Control accuracy of movement rate:

When rate is less than 0.5mm/min, within ±1% of setting value

When rate is no less than 0.5mm/min, within ±0.2% of setting value

 (3) Other parameters

1. Effective testing width: **0mm

2. Effective distance of tensile: **0mm

3. Effective distance of compressive: **0mm

4. Size of host: ***0×**0×***0mm

5. Electrical source power: 2kW, **0V, *0Hz

6. Weight of host: about ***0Kg

Configuration (take real product as standard)

(1) Measuring system

One load sensor: **0KN load sensor (Import)

(2) Control system

1. DSC**0 full digital closed loop measuring and control system

 a. Load measuring system

 b. Displacement measuring system

c. Deformation measuring system

2. A set of servo motor, speed regulation and control system (Panasonic)

3. A set of timing belt (Samsung)

(3) Load frame

1. Structure: upper space structure

2. Frame of whole machine: WDW***0 series frame

3. Two high-precision and gapless ball screws

(4) Microcomputer control system

1. One HP commercial computer

2. A set of DSC**0 closed loop measuring and control software

3. One color ink-jet printer

(5) Clamps

1. A set of wedge tensile clamps (Jaw size: flat **7mm，***4mm；V¢*-¢9mm,¢*-¢*4mm,¢**-¢*1mm )

2. A set of compression clamps (Dia. of plate
