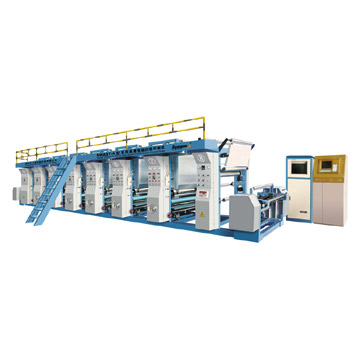

Computerized Color Plastic Press

详情

Detailed Product Description Use: this machine is suitable for multi-color once-through continuous printing for such roll film materials with excellent printing performance as BOPP, PET, PVC, PE, aluminum foil and paper. Performance and characteristics: 1) Every control module of the automatic color register system is equipped with microprocessor and can correct the deviation of color register quickly and accurately. 2) The main machine adopts frequency control of motor speed. 3) Releasing tension adopts full-automatic tension controller and magnetic powder brake. 4) Rolling adopts full-automatic constant tension and traction coordinated with torque DC motor, double-station automatic turnover, replacing the material without stopping the machine. 5) Closed oven and independent heating send the breeze system. 6) Pneumatic pressing system and pneumatic ink-scraping system. 7) Automatic ink circulation system is provided. 8) Air shaft is used for unwinding and rewinding shaft providing convenient assemble and unassembled possibilities. 9) It is provided with display of press line speed and accumulated length in meter. *0) Quality cast-iron structure for the whole set provides good stability and vibration absorbing capability *1) Pneumatic back pressure shifting blade. *2) It can elect different computer flashed boundary and stationary checking figure. Main technical details: 1) Model of machine: SWASY-A***0 2) Effective printing width: ***0mm 3) Max. width of base material: ***0mm 4) Max. printing speed: **0 ~**0m/min 5) Max. mechanical speed: **0m/min 6) Max. diameter of rolling and releasing: **0mm 7) Inside diameter of roll core of base material: *6mm 8) Diameter of printing plate roller: Φ**0 ~ **0mm 9) Modified accuracy of computer registration: 0.*5mm (whole machine) *0) Control range of tension: 0 ~ *5kg/full width *1) Heating power of oven: *0kW *2) Total power of machine: **0kW *3) Weight of machine: *5,**0kg *4) Overall dimensions (L x W x H): *4,**0 x 2,**0 x 2,**0mm
