container door locks

Product Name

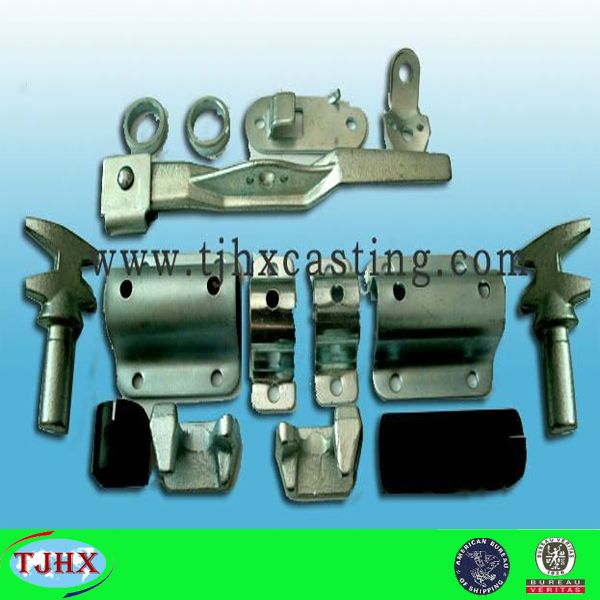

Container Door Locks

Part No.

LD***0

Standard

ISO

Specification

shipping container door lock parts

container door handle, cam, keeper, bracket, hub, rivet

container door hinge, lug, pin

Material

Steel

Weight

5kg

Appearance

Painting and Sanding

Package

1 set per box,**0boxes perplywood pallet

Detail

NO.   DESCRIPTION.   Q’TY/SET   PART NO.

1   CAM L.H            4       LD****-L

2   CAM R.H            4       LD****-R

3   KEEPER L.H        4       LD****-L

4   KEEPER R.H        4       LD****-R

5   HANDLE           4       LD***3

6   HANDLE HUB     4       LD***4

7   RETAINER CATCH   4       LD***5

8   RETAINER PLATE   4       LD***6

9   BUSH              4       LD***7

*0   BEARING BRACKET 8       LD***8L

     OUTER LARGE

*1  BEARING BRACKET 4        LD***9S

      OUTER SMALL

*2   SPLIT LARGE BUSH 8       LD***0L

*3   SPLIT SMALL BUSH 4       LD***1S

*4   RIVET              4         LD***2

*5   ANTI-RACK RING   *6       LD***3

*6   TUBE               4       LD***4
