Application
Diaphragm spring is one of key components of
clutch, ensuring clutch getting satisfactory clamp load, release
load and clamping lift. The qualified diaphragm spring is of
important guarantee of clutch well-working performance, so it is
very important for check the load characteristics of diaphragm
spring.

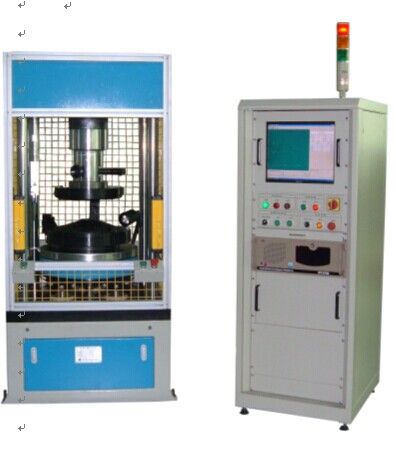

The
series of machines are special equipments to check the
qualification of clutch diaphragm spring load characteristics, with
features of high measuring accuracy, high speed test, suiting for
diaphragm spring batch production line and clutch assembly
line.
Test standard
1.To design and manufactureaccording 5.1
in the term 5 of standard of QC/T******4Bench Test Method of
Automobile Clutch
2.To design and manufacture under test standards
provided by the customers.
Test items
●Peak value,
valley value and clamp load after wear (forward, backward and mean
value are optional)
●Measure load
values at three displacement points ( forward, or backward or mean
value)
●load VS
deformation when loading curve
