离岸价格
获取最新报价5629 ~ 25623 USD / Set ( Negotiable )
|1 Set Minimum Order
国家:
China
型号:
refer to specifications
离岸价格:
5629 ~ 25623 USD / Set ( Negotiable ) 获取最新报价
位置:
-
最小订单价格:
5629 per Set
最小订单:
1 Set
包装细节:
Standard export containers, bare main machine, motors and small parts are packed in wooden cases.
交货时间:
Within 10-15 working days after receiving the down
供应能力:
100 Set per Month
付款方式:
Western Union, D/P, D/A, L/C, T/T
產品組 :
联系人 Ms. Rene
Tanxiang Road, Zhengzhou, Henan
Introduction

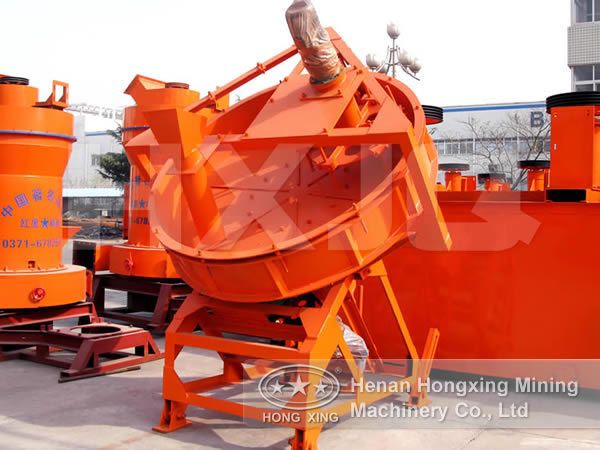

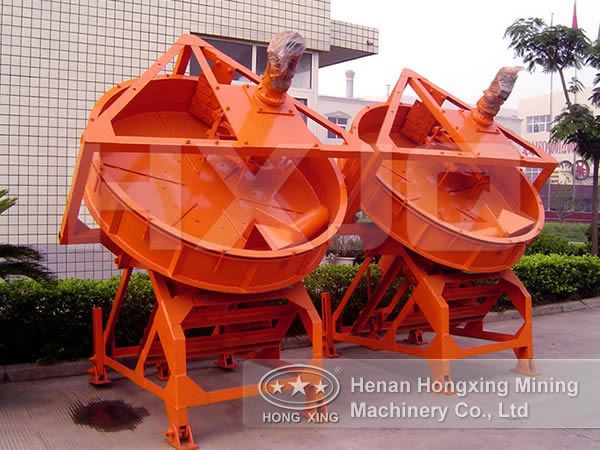

Disk grain making machine is a cubage measuring feeding equipment;
it supplies materials to the next procedure evenly and
continuously; at the same time, it can bear relatively higher
pressure.
Application and
Advantages:
It is widely used in gold
concentrator, coal mine, chemical plant, construction and foundry
for quantitative and even feeding. Advantages of this machine are:
simple structure,easy-to-adjust and excellent in performance. This
machine is suitable for conveying of materials with granularity
less than 50mm, while it is not suitable for cohesive materials,
easy-to-flow or hard-to-flow materials.
China hot sale disk grain making machine advantages:
1. Simple structure
easy-to-adjust
2. Excellent in performance
3. High making ball rate
4. The grain round strength high
5. Visual operation easily maintenance
Parameter
|
Specification
(m) |
Rotation speed
(r/min) |
Production capacity
(t/h) |
Motor
(kw) |
Adjustment range of obliquity
|
Dimensions
(m) |
Total weight
(kg) |
|
Φ2.2
|
14.25
|
4-8
|
7.5
|
35-55
|
2.8×2.75×2.58
|
2850
|
|
Φ2.5
|
11.81
|
5-10
|
7.5
|
35-55
|
3.2×2.3×3
|
3250
|
|
Φ2.8
|
11.21
|
12-16
|
7.5
|
35-55
|
3.4×2.6×3.1
|
3710
|
|
Φ3.0
|
11.3
|
15-18
|
11
|
35-55
|
3.7×2.7×3.3
|
4350
|
|
Φ3.2
|
9.6
|
15-20
|
11
|
35-55
|
3.9×2.7×3.4
|
5110
|
|
Φ3.6
|
9.1
|
18-24
|
15
|
35-55
|
4.3×3.1×4.0
|
6510
|
| 国家: | China |
| 型号: | refer to specifications |
| 离岸价格: | 5629 ~ 25623 / Set ( Negotiable ) 获取最新报价 |
| 位置: | - |
| 最小订单价格: | 5629 per Set |
| 最小订单: | 1 Set |
| 包装细节: | Standard export containers, bare main machine, motors and small parts are packed in wooden cases. |
| 交货时间: | Within 10-15 working days after receiving the down |
| 供应能力: | 100 Set per Month |
| 付款方式: | Western Union, D/P, D/A, L/C, T/T |
| 產品組 : | Ore dressing machine |
