flow meter

China

flow meter

获取最新报价

Zhejiang,China(Mainland)

-

-

in carton or wooden case

in 7 days after receipt of payment

10000 Piece per Month

T/T, Western Union

Flowmeter

现在联系

详情

Gear Flowmeter, Turbine Flowmeter, Digital Flowmeter, Oil Flowmeter used widely in oil, food industry, Size: 3/4"-3"





Flowmeter, Gear Flowmeter, Turbine Flowmeter, Oil Flowmeter.

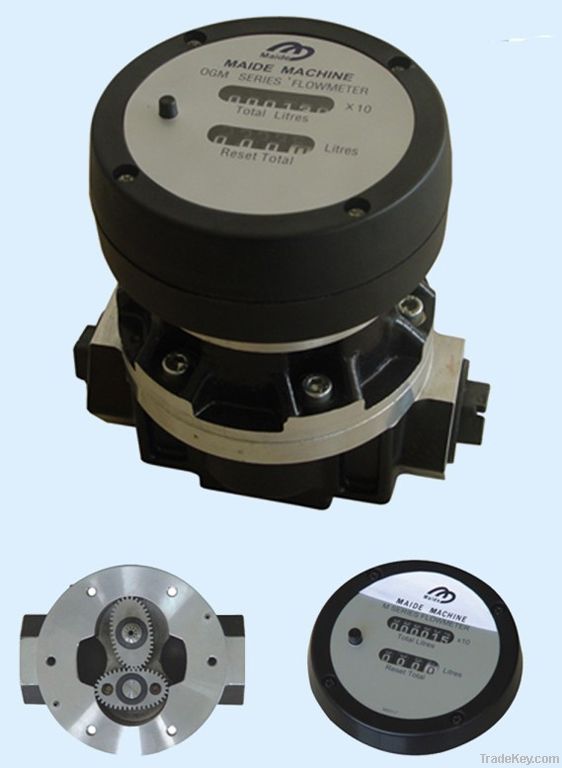

1. OGM Gear Flowmeter.





OGM-25/40/50 aluminum oval gear meter has the ability to handle a wide range of fluid viscosities with exceptional levels of repeatability and durability,applying in the petroleum,chemical,food industry,etc.





Technical Data
Model OGM-A-25 OGM-A-40 OGM-A-50
Size 1" 1 1/2" 2"
Min.Flow Rate 20L/min 25L/min 30L/min
Max.Flow Rate 120L/min 250L/min 300L/min
Accueacy ±0.5% ±0.5% ±0.5%
Repeatability ≤0.03% ≤0.03% ≤0.03%
Max.Viscosity 1000CPS 1000CPS 1000CPS
Max.Operating Pressure 3.4MPa 1.8MPa 1.8MPa





2. Turbine Flowmeter



High accuracy, Everlasting ,Small volume turbine flowmeter
Module design can be used with output module ,sensor and long-distance transfers
Has the same function
It is easy to change the spare parts inside, and easy to maintain
It is easy to assembling as its cabinet and compact design
Lithium battery ,can supply 9000 hours power.



Connecting Style

NPT (female thread)  ANSI(flange)

Material

Aluminum



Flow range

3/4"  2-20GPM (7.6-75.7LPM)

1"   5-50GPM(18.9-190LPM)

1-1/2" 10-100GPM(38.0-380LPM)



  Accuracy

3/4"

±1.0%

  1"

±1.0%

1-1/2"

±0.5%

Repetition

±0.1%

Pressure class

300PSI /21bar

Supposed filter dimension

55



3. LC Gear Flowmeter Meter



 LC gear flowmeter are widely used in flow measurement in the industrial field such as petroleum exploitation, oil refinery, chemical and oil storage.

Mode

LC-15

LC-20

LC-25

LC-40

LC-50

LC-80

LC-100

DN (mm)

15

20

25

40

50

80

100

Min. Flow Rate m3/h

0.3

0.3

0.6

1.6

5

6

10

Max. Flow Rate m3/h

1.6

3

6

16

25

50

80

Accuracy %

+-0.3~+-0.5

Working Temperature oC

-10~80

Pressure MPa

1.0-6.3

Liquid Viscosity MPa.s

2~75

Min. Scale Value L

0.1

1

10

Register Amount m3

999.99

9999.9

99999

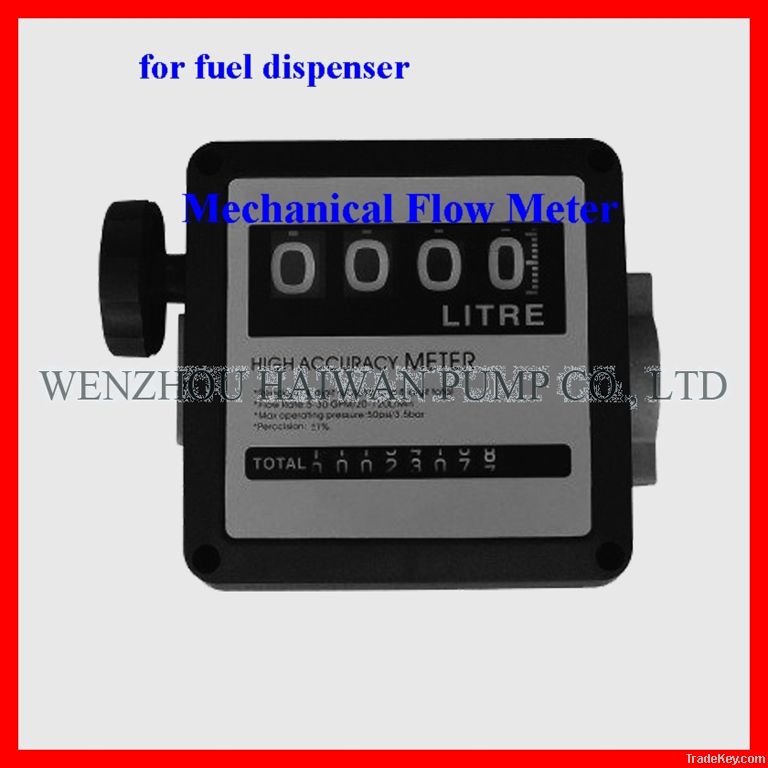

4. FM-120L Flowmeter



FM-120L Flow Meter is to measure the exact quantity of the dispensed fuel and designed for noncommercial use only. These flowmeters are reliable,inexpensive, easy to install and simple to calibrate on the workplace.

Aluminium metering chamber,1" thread connection.

Mechanical readout device with rotating wheels. Subtotals can beset to zero, total readouts can not.

      Model

                 FM-120L

Inlet&Outlet

1" & 1 1/2”

Max.Pressure

3 Bar.

Flow Rate

20L-120L/min

Measurement

Litre

Precision

±1%

Package

6pcs

Net Weight

12Kgs

Gross Weight

13Kgs

Dimension

53*25*36cm


 5. PD Flow Meter

 6.  Digital Oval Gear Flow Meter
