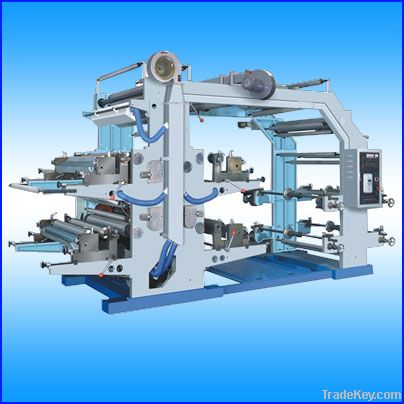

Four Color Flexographic Printing Machine

离岸价格

获取最新报价

11000 USD / Set

1 Set Minimum Order

国家:

China

型号:

Four Color Flexographic Printing M

离岸价格:

11000 USD / Set （面議）获取最新报价

位置:

China

最小订单价格:

11000 per Set

最小订单:

1 Set

包装细节:

wooden packaging

交货时间:

70days after receving 30% deposit

供应能力:

10 Piece per Day

付款方式:

L/C, T/T

產品組 :

现在联系

Shantou JinHong Mechanical & Electrical Industry Co., Ltd.

China

免费会员

联系人 hengshan

song shan load, Shantou, Guangdong

现在联系

产品规格

Product Type: Bag
Surface Finish: Film Lamination
Printing Type: Flexographic Printing
Brand Name: jinhong

Machine model:YT-4600
Max. Printing Width mm:560
Max. Printing Speed m/min:50
Heating Power KW:7.5
Total Power KW:10.87
Weight of Machine t:3
Overall Dimension (L x W x H) m:4.2x1.6x2.4

详情

Features

1) Easy operation, flexible starting, accurate color register.

2) The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.

3) Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.

4) The printing ink is spread by anilox with even ink color.

5) Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.

6) **0°continuous and adjustable longitudinal register device.

7) The frequency control of motor speed adapts to different printing speeds.

8) There are Jogging/Stopping s on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

9) Magnetic powder brake for unwinding tension control, and magnetic powder clutch for rewinding tension control.

Machine model	YT****0
Max. Printing Width mm	**0
Max. Printing Speed m/min	*0
Max. Mechanical Speed m/min	*0
Max. Diameter of Roll Material mm	ф**0
Internal Diameter of Roll Core mm	ф*6
Rang of Repeat Printing Length mm	******4
Accuracy of Registration mm	±0.5
Plate Thickness (Both side adhesive included) mm	2.*8
Heating Power KW	7.5
Total Power KW	0.7
Weight of Machine t	3
Overall Dimension (L x W x H) m	4.2x1.6x2.4
