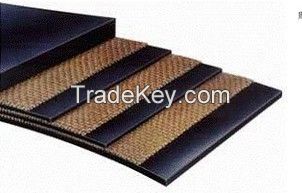

General Fabric Conveyor Belt (EP/NN CC.)

详情

The general fabric conveyor belt is made of EP or NN fabric and finished through the processes of calendering, firming and vulcanizing, etc.

It is suitable for conveying in normal temperature various non-corrosive pointless lumps, granular or powders such as coal, coke, sand and cement in bulk or packaged products.

The belt is formed as cut-edged or mould-edged so as to meet requirements of different uses.

We could offer belting with cover grades in accordance to International standards, like DIN 22102, RMA, AS 1332, SABS 1173/2000,IS 1891, BS 490, JIS K 6322 etc. are available.

Belts are available in any width up to 100inch according to different requirement.

Covers are manufactured for any required thickness. The selection of top and bottom cover thickness would depend on the loading cycle, material and need for balanced constructions.

EP conveyor belt is suitable for transportation of middle and long distance, heavy load under a high speed.The characteristics are: Low load elongation; Good flexing capacity,troughable; Shook resistant and long-lasting; Water resistant,no change in different moisture condition; Heat resistant; Cannot be moldy

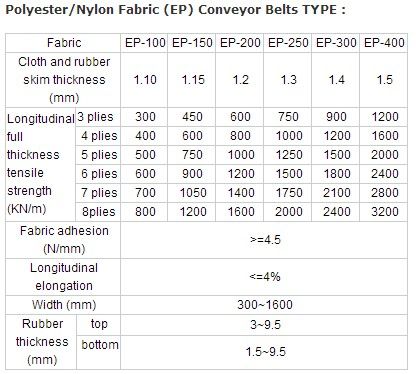

Type Model: EP80,EP100,EP125,EP160,EP200,EP250,EP300,EP315,EP350,EP400,EP500,EP630,EP800


NN conveyor belt is one of the strong type conveyor belts, they are suitable for transportation of mid-distance, heavy loading capacity, high speed, strong lash and high vulnerability,be used to convey coal, mineral products, stone and piece materials. The characteristics are: High restraint and light weight; Strong adhesive force and curve-resistance; Good trough ability; High elasticity and lash-resistance; Moisture-resistance and acidity and basicity-resistance; High vulnerability and long-lasting time.

Type Model: NN100,NN125,NN200,NN250,NN300,NN350,NN400,NN500
