离岸价格
获取最新报价0 ~ 80 USD ( Negotiable )
|300 Meter Minimum Order
国家:
China
型号:
EP belt-05
离岸价格:
0 ~ 80 USD ( Negotiable )获取最新报价
位置:
-
最小订单价格:
-
最小订单:
300 Meter
包装细节:
with Rollers , PVC water-proof cloth or as order required
交货时间:
within 20days
供应能力:
8000 Meter per Month
付款方式:
Western Union, L/C, T/T
產品組 :
联系人 Mr. Alister
Free Trade Zone, Qingdao, Shandong
Patterned Conveyor Belt/ Chevron Conveyor
Belt
Properties:
1. Plies:1-10
2. Width:
500-2200mm
3.
Thickness:5-30mm
4. ISO,
SGS ...

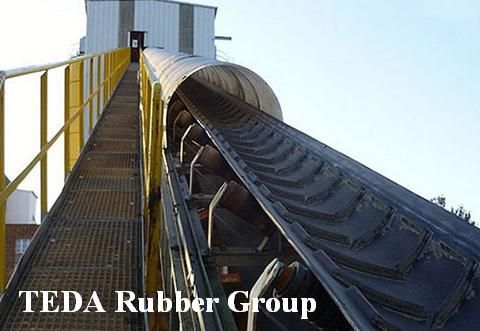

Chevron belt is used for carrying wet, loose sand and grain materials in bugs.
The v-shape of the chevron cleats prevents the material from sliding back.
The salient features of the belt :
1.Can carry loose materials at angle of 17-18 and bagged material at 30-35
2.Cleat angle and pitch are designed for smooth travel over return idlers
3.Cleats and the top cover rubber are mono block molding for strength
4.Chevron conveyor belts are used primarily when the angle of incline becomes too steep for a smooth conventional conveyor belt. The belt is fitted with integrally moulded cleats which prevent the material from sliding backwards as would be the case with a smooth surface belt. Different cleat designs allow the carrying of many types of material, from bulk solids to unit loads.
5.Application: There are open type and closed type, suitable for bulk or bagged materials such as powder and granule with incline less than 45 C.
6.Technical Data of Rubber Cover:
7.Tensile Strength: ≥10Mpa
8.Elongation at Break: ≥350%
9.Adhesive strength between carcass: ≥6.0N/mm
10.Adhesive strength between cover and carcass: ≥3.0N/mm
11.Elasticity: ≥32%
12.Abrasion: ≤200mm3
Standards offered: GB/T9770, DIN22131, EN ISO 15236, SANS1366 and AS1333...
国家: | China |
型号: | EP belt-05 |
离岸价格: | 0 ~ 80 ( Negotiable ) 获取最新报价 |
位置: | - |
最小订单价格: | - |
最小订单: | 300 Meter |
包装细节: | with Rollers , PVC water-proof cloth or as order required |
交货时间: | within 20days |
供应能力: | 8000 Meter per Month |
付款方式: | Western Union, L/C, T/T |
產品組 : | Chevron conveyor belt |
