ALLSTAR
MACHINERY:Step Tile Forming Machine,Glazed Tile Forming
Machine,Steel Tile Forming Machine

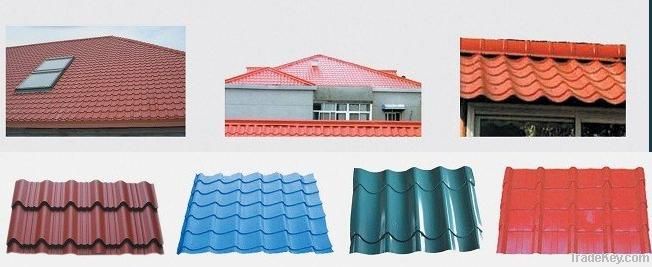

This type of Glazed
Tile Roll Forming Machine, Roof Tile Roll Forming Machine,Steel
Tile Roll Forming Machine and Step Tile Roll Forming Machine has
advantage including beautiful and classical appearance grace
tasty, it is widely used in factory which looks like a park, tour
spot, elegant buildings for landscaping purpose, hotel,
exhibition, vocation village, family construction and outdoor
decorate.

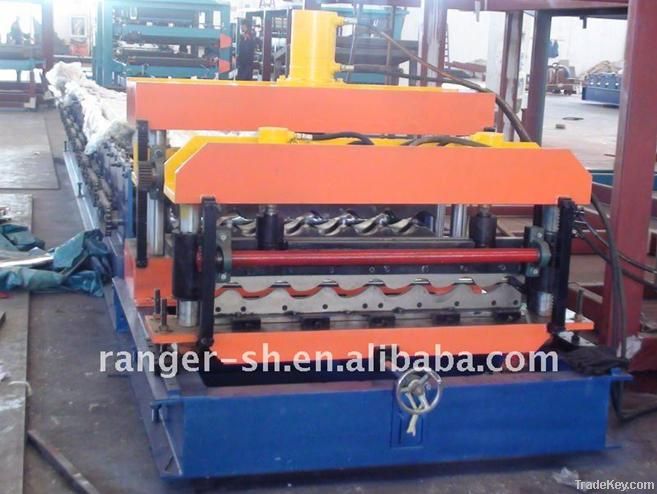

This machine is
composed of feed leading table, main forming machine, mould
former device, cutting device, hydraulic station, computer
control system and so on.
Optional
devices:
normal holder,
hydraulic holder, auto-stacker and discharge table.
Product Description of
Glazed tile roll forming machine
1. Suitable to
process: Colored Steel plate, galvanized board
2. Width of the plate: ***0mm
Glazed tile roll
forming machine
Parameter:
1. Appearance size:
***0mm****0mm****0mm
2. Wheel material: *5#steel
3. Blade material: CR*2
4. Chromium coating 0.*5mm
5. Control system: PLC control
6. Power of electrical motor: 3*3KW
7. Power **0V *0 Hz, 3 Phase
8. Speed of product: **3m/min
9. Thickness range: 0.**0.6mm
*0. Purpose: Roof board
*1. Board's width: ***0mm
Machine components:
1. Forming machine
1set
2. Hydraulic pressure system 1set
3. Auto-cutting knife 1 set
4. Computer controlled box 1set
5. Moulding press machine 1set
6. Man-made holder 1set
I.the main
technical parameters
1, host large frame using **0H steel welding.
2, wall-type chain drive, wall thickness of *4mm.
3, shaft diameter: *2mm solid shaft.
4, host : *6rows forming.
5, the main motor power 3KW.
6, hydraulic station motor power 4kw ( large tank) .
7, the computer a " Delta" system control error of 2mm.
8, pressure-based depth of *0mm.
9. Roll Material: high quality *5 # forged steel
*0. Rolling thickness : 0.**1 .0 MM
*1. Materials Expand Width: ***0mm
*2. The computer use of PLC, Taiwan Dealt
*3. The machine weighs about 5.5tons, length of 9 meters wide and
1.*5 meters, 1.2 meters high
*4.Voltage: **0V *0Hz
*5.Processing precision : within 1.*0mm
*6.Equipment components: Man-made uncoiler, Roll forming machine,
computer control system, hydraulic control system, press forming,
cutting
*7.Transportation: one complete equipment need one **-feet
container to hold
*8.Delivery Time: *0% deposit, and balance before delivery
*9.Standard components: Chain 1 pcs, Hydraulic oil pipes: 2 pcs,
electromagnetism valves 1 pcs. limit switch: 2 pcs
*0.this products used in tour beauty spot, hotel, exhibition,
holiday village building
*1.This machine is mainly compose of feeding table, forming
machine, stamp forming device, forming cutting device, hydraulic
system, computer control system and discharge table.The optional
devices have manual uncoiler, hydraulic uncoiler and auto stacker.
( Optional)
II. Working process:
Decoiling-Feeding-Punching-cut to length-product packing manual
The whole process of the roof tile roll forming machine is
controlled by computer automatically, hydraulic transmission,
hydraulic forming, hydraulic cutting.
III. Products Warranty: *2 month, and we will provide the technical
support for the whole life of the equipment
| 国家: |
China |
| 型号: |
ZGSY 1306
|
| 离岸价格: |
20000 ~ 50000 / Set ( Negotiable ) （面議）
获取最新报价
|
| 位置: |
Shanghai of China |
| 最小订单价格: |
20000 per Set |
| 最小订单: |
1 Set |
| 包装细节: |
normal packing |
| 交货时间: |
60 days |
| 供应能力: |
30 Set per Year |
| 付款方式: |
T/T, L/C |
| 產品組 : |
glazed tile roll forming machine
|
