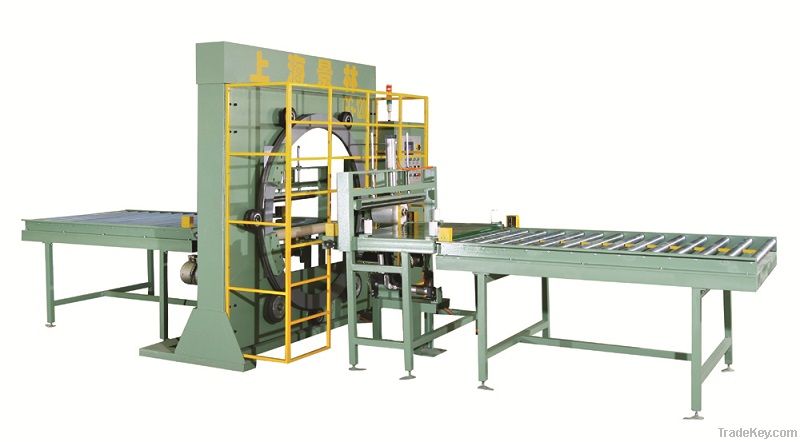

horizontal wrapping machine

离岸价格

获取最新报价

( Negotiable )

1 Set Minimum Order

国家:

China

型号:

GG200

离岸价格:

( Negotiable )（面議）获取最新报价

位置:

shanghai

最小订单价格:

最小订单:

1 Set

包装细节:

seaworthy wooden case

交货时间:

about 35 days

供应能力:

25 Set per Month

付款方式:

T/T, L/C

產品組 :

horizontal wrapping machine

现在联系

Shanghai Jinglin Packaging Machinery Co., Ltd

China

免费会员

联系人 Ms. susan

A NO.8 Xifei RD, Jiufu Develop Zone,Songjiang Distric,Shanghai,PRC,201615, Shanghai, Shanghai

现在联系

产品规格

Brand name:JINGLIN
Original place:Shanghai
Power:2.0kw
Air supply:6-8kgf/cm2
Power voltage:380v/50Hz 3phase 5wire
Ring speed:40-90r/min
Roller speed:2-4m/min
Overlap scope:10%-90%

详情

APPLICATION:

GG series automatic wrapping machine for horizontal was designed mainly for metallurgical industries. The machine could be widely used in the exterior wrapping of horizontal shapes such as steel tube, stain less steel tube aluminum tube rubber tube, shapes like bar floor board & etc.

FEATURES:

PLC & HMI are adopted.

Double-ring & double-rub wheel devices make working more safe stable & energetic.

Special conveying device is easy for loading & conveying the package strengthens the transfer capacity.

Wide packing belt can be used for cutting the packing cost & making the work more efficiency.

Indicator alarms automatically when trouble occurs. Trouble can be shown.

Photocell sensor is adopted for setting packing position.

The turning ring is controlled by converter. Overlap rate could be adjusted according to the requirement.

Height of the ring centre could be adjusted.

Separate control panel makes operation & maintenance easily.

Material tension could be adjusted automatically.

TECHNICAI DATA:

ITEMS	GG0**	GG0**	GG0*	GG0*
Package width	******0mm	******0mm	*******0mm	*******0mm
Package length	Not limited	Not limited	Not limited	Not limited
Conveyer length	**0mm2 Or on request	**0mm2 Or on request	**0mm2 Or on request	**0mm2 Or on request
Conveying speed	About 8m/min	About 7m/min	About 6m/min	About 4m/min
Rotating speed	About *0r/min	About *0r/min	About *5r/min	About *0r/min
Conveyer height	**0mm	***0mm	***0mm	***0mm
Max loading	***0kg	***0kg	***0kg	***0kg
Overlap scope	About 0%*0%	About 0%*0%	About 0%*0%	About 0%*0%
Power output	About 7kw	About 9kw	About *2kw	About *6kw
Power voltage	*0V/3phase/0Hz	*0V/3phase/ 0Hz	*0V/ 3phase/0Hz	*0V/3phase/0Hz
Material	Compound paper tape/knit tape/anti-rust tape/waterproof tape/ stretch film/flax	Compound paper tape/knit tape/anti-rust tape/waterproof tape/ stretch film/flax	Compound paper tape/knit tape/anti-rust tape/waterproof tape/ stretch film/flax	Compound paper tape/knit tape/anti-rust tape/waterproof tape/ stretch film/flax
Material size	width:≤0mm Max OD:0mm ID:*5mm	width:≤0mm Max OD:0mm ID:*5mm
