Hydraulic Riveting Machine

详情

Hydraulic Riveting Machine
Nonstandard plan can be customized according to customer's demand
FBTXFT**0
Product feature
1. Cbody design, whole body cast, hightemperature aging, high rigid and small deformation.
2. Small forming force of riveting, only 1/*0 that of punching and riveting, no deformation after riveting with smooth and nice riveting surfaces.
3. Professionally designed to be applied in riveting of various components and parts.
4. Frequency conversion power head, arbitrarily adjusted speed of main shaft, easy operation and wide scope.
5. Full hydraulic system, high pressure, stable work performance, large regulating range of pressure, and high precision.
6. Safety design, application of bimanualness, with emergency stop as well as jog up and down function.
7. The downward movement has two speeds of fast forward and work feeding, fast speed improves work efficiency while work feeding protects mould to enhance riveting quality by arbitrary adjustment of speed.
8. Circulating startup of key pressing and foot switching, easy to achieve autocontrol.
9. No vibration, low noise and energy, easy and safe operation with high efficiency and low cost.
*0. Sealing element applies NOK of Japan and DZ USEALS.

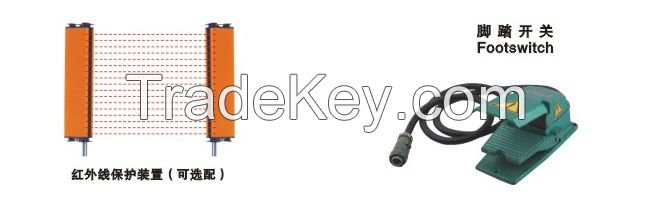

*1. Infrared protection device. (as required by customers)

Technical parameter
Specification
theoretical output pressure **0(*0T)kn
rated oil pressure *3mpa
max stroke **0mm
max opening height **0mm
throat depth **0mm
fastforward speed **0mm/s
working speed ***0mm/s
return speed **0mm/s
the size of the working table **0mm***0mm
spin riveting motor power 2.*3.7kw
spindle motor speed *****0rpm
power of motor 3.7kw
power **0v
weight ***0kgs
