High-precision multi-station 4-column hydraulic machine

详情

High-precision multi-station *-column hydraulic machine

Non-standard plan can be customized according to customer's demand

FBY-SZ-M*0

Product feature

1.*-column multi-station structure design ensures stressed stability. Circular arc console design makes it possible for two persons to put products on molds simultaneously. Continuous operation of press machine improves work efficiency and protect safety of operation staff.

2.This equipment adopts PLC, force sensor and touch screen to form intelligent operation system. Parameters like pressure, displacement, time, count and alarm can be set and displayed on the touch screen.

3.With adoption of force control mode, after stamping is finished, compare stamping force value with set force value within certain displacement range, then judge whether workpieces are qualified or not, output alarm for under-pressure or over-pressure.

4.Press-fitting force value range can be set to generate Time-Force Value curve.

5.Displacement, pressure and flow rate corresponding to fast speed and low speed can be set and displayed on the touch screen.

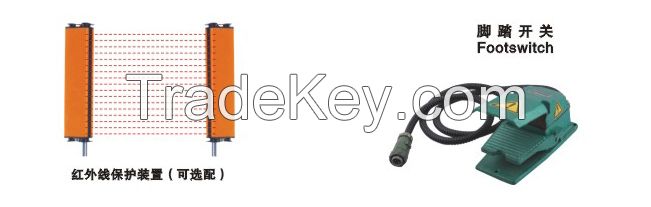

6.Inching/automatic functions can be switched mutually. Automatic function can be realized through foot switch.

7.High precision of repeated positioning:±0.*2mm.



Technical parameter

Specificaion

theoretical output pressure **0kn

rated oil pressure *2mpa

max stroke **0mm

number of work position 6

max opening height **0mm

fast-forward speed *5mm/s

working speed ****0mm/s

upstream speed *8mm/s

the height of the working table **0mm

rotating disc dimension(diameter) **0mm

normal working oil temperature small than *0 ℃

separator corner precision +/**0s

perpendicularity of main shaft and lower mold fixing board 0.*5mm

paralleism of pressure sensor lower surface and lower mold fixing board upper surface 0.*5mm

driving power 5.5kw

power **0v

machine tool external dimension-front back ***0mm

machine tool external dimension-left right ***0mm

machine tool external dimension-total height ***0mm

weight ***0kgs
