1. introduction

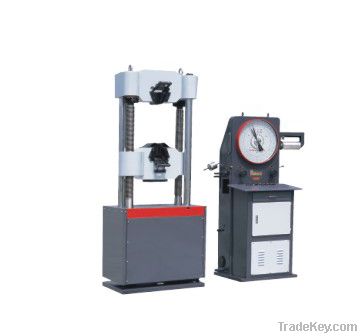

Model WE series hydraulic universal testing machine UTM adopts
the design of placing hydraulic loading system, swing force test
system, main engine, ergometer separately. It has the
characteristics of operation amenity, working steady, high
accuracy and loading steady. It is used to stretch, compress,
curve and cut metalloporphyrin, cement, concrete, plastics and so
on. The apparatus has automatic depict device and loading speed
indicator, you can shift three loading velocity in each range.
2. structure
The main engine consists of an adjustable support base, screw
thread pole, moveable crossbeam (lower clamp set) and a working
frame working oil tank, piston, platform, support and upper
crossbeam (upper clamp set). Element of this apparatus:
high-pressure oil pump supplies oil to working oil tank, the
piton moves and press board and upper crossbeam to do stretch and
press test. The stretch test is done in the space between upper
crossbeam and movable crossbeam. The lift motor, gear, chain
drives to rotate at a same speed to move the crossbeam.
3. Characteristics
It has advantages such as high precision, light weight, easy
operation, clamping automatic hydraulic pressure, long use life
and so on. It is applicable for detecting various indexes such as
tension, compression resistance, bending etc. to metal and
non-metallic material in various laboratories.
4. Main technical parameters
| Max. test force | **0KN |
| Measuring range and dial min. scale value |
***0KN 0.*5KN/grid ***0KN 0.1KN/grid ****0KN 0.2KN/grid |
| Measuring relative error (no higher than) | ±1% |
| Max. distance between tensile jaws | **0mm |
| Width of flat plate specimen | ≤*0mm |
| Flat specimen holding thickness | ***5mm |
| Diameter of round specimen | ***0mm |
| Clip diameter of round specimen with shoulder | *0, *3mm |
| Specification to rib and ribbed round specimen | M*0 |
| Distance between bending support rollers | ******0mm |
| Size of shearing specimen | *0mm |
| Tensile space span between two columns | **2mm |
| Compression space between two pole supports | **2mm |
| Piston stroke | **0mm |
| Oil pump motor power | 2.2kW |
| Main frame dimension | **0×**0×***5mm |
| Dynamometer dimension | ***0×**0×***8mm |
| 国家: | China |
| 型号: | WE-100 |
| 离岸价格: | 获取最新报价 |
| 位置: | CHINA |
| 最小订单价格: | - |
| 最小订单: | 1 Set |
| 包装细节: | wooden canse |
| 交货时间: | 15 days after payment |
| 供应能力: | 50 Set per Month |
| 付款方式: | T/T |
| 產品組 : | - |
