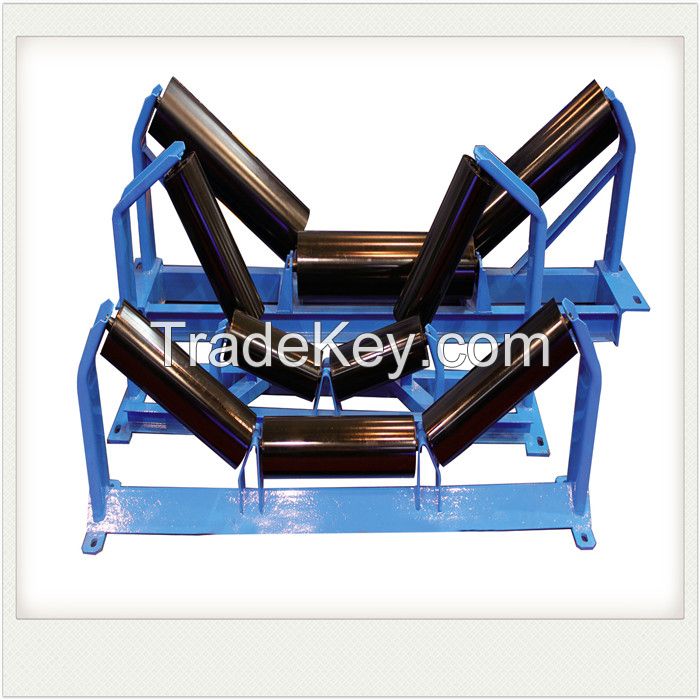

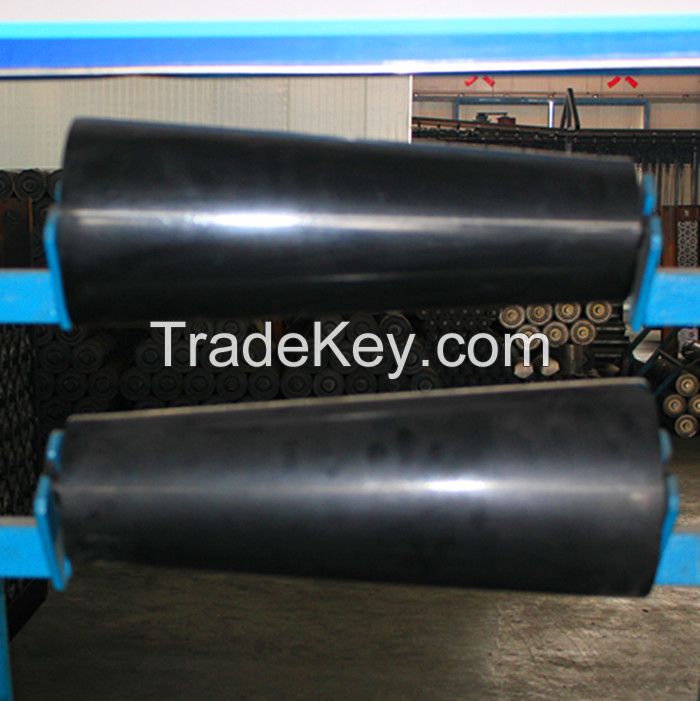

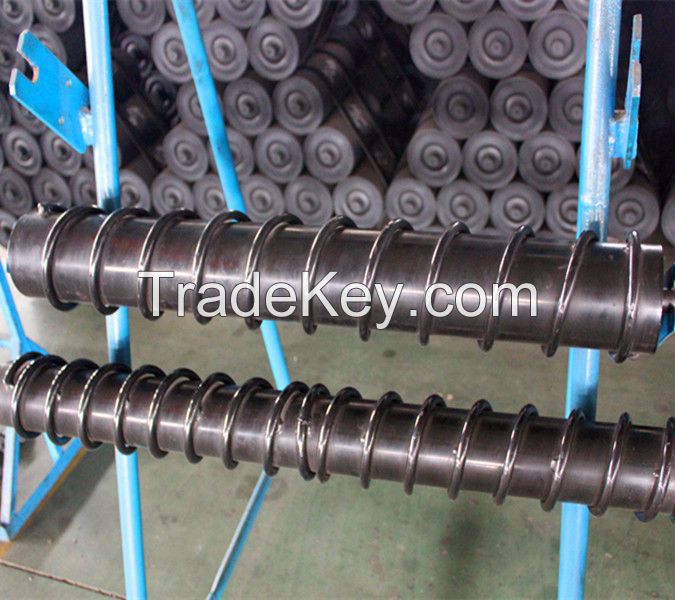

ISO conveyor rollers/return rollers/impact rollers for conveyor

China

Dia.89

5 ~ 45 / Piece ( Negotiable ) 获取最新报价

Shandong,China

5 per Piece

20 Piece

standard export packing cases made of exemption plates

twenty days after the order(big order as Negotiati

600000 Piece per Year

PayPal, Money Gram, L/C, T/T

conveyor roller

现在联系

产品规格

Lift time : 50,000hours Production capacity : as usual 600000/year Roller Diameter : 76-219mm(non-Standard supported) Roller Length : 190mm to 3500mm Roller tube : Q235 carbon steel,high-precision ERW,welded with DIN239 Shaft : 45# Cold drawing round steel in accordance Bearing : Deep groove ball bearing 2RZ and 2Z with C3 clearance Bearing brand : SKF, NSK,FAG, HRB, LYC, ZWZ etc. Color : according to your requirement Finish : Ordinary painting/hot galvanized painting/rubber

详情

ISO conveyor rollers/return rollers/impact rollers for conveyor
Product Introduction
As one of National Innovation Fund Project, LIBO conveyor return idlers are of complete sealing waterproof and dustproof design, whose bearing assembly employs high-precision bearing chamber and special bearings for idlers, which provide fine appearance, low noise, free maintenance, long service life(exceeding 50,000 hours) and high reliability. We invented controllable braking conveyor rollers, which can solve the problem of controllable brake along the line of large downward belt conveyors.
Advantage:

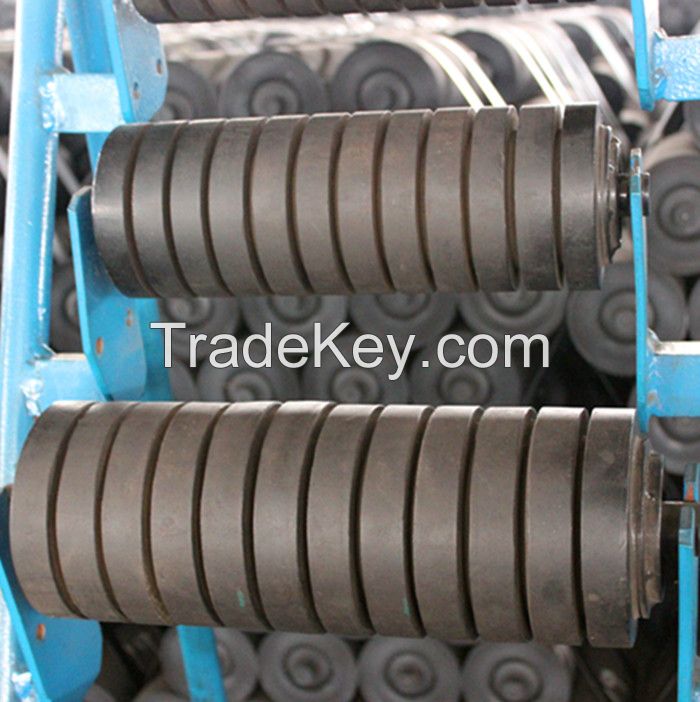

1. The rubber ring of impact conveyor rollers is made up of flame retardant rubber.
2.Stamping parts are used as bearing housing, which are machined by NC lathe;
3.The bearings of the  return idlers are KA serial special bearing for rollers;
4.The material used for bearing shafts is high-strength 45#steel, and NC turning and grinding can ensure precision;
5.The sealing is specially designed with abilities of self-compensation, low resistance, waterproof and dustproof, which can keep bearing in good lubricated condition for a long time.
                                               Basic Parameter of our roller
Order Parameter Description
1 Brand  LBHI
2 Lift time More than 50000 hours
3 Production capacity as usual 600000/year.
4 Roller Diameter 76-219mm(non-Standard supported)
5 Roller Length 190mm to 3500mm
6 Roller tube Q235 carbon steel,high-precision ERW,welded with DIN2394 Standard.
7 Shaft 45# Cold drawing round steel in accordance withDIN17100 and other
equivalent standard, ISO h6 precision
8 Bearing Deep groove ball bearing 2RZ and 2Z with C3 clearance
9 Bearing brand SKF, NSK,FAG, HRB, LYC, ZWZ etc.
10 Color according to your requirement.
11 Finish Ordinary painting/hot galvanized painting/rubber/steel screw/galvanized
12 Welding Mixed gas shielded arc welding /Automatic CO2 gas shielding welding
13 Standard ISO/BS/JIS/DIN//CEMA/Australia
14 Package standard export plywood cases or iron cage with protective bubble film
15 suporting speed Max speed 7m/s
16  Inspection Professional inspection team
