Laser power combining module

China

-

10000 ~ 20000 / Unit ( Negotiable ) 获取最新报价

China

10000 per Unit

1 Unit

wooden box

15 to 20 working days

100 Unit per Month

T/T, Western Union, PayPal

现在联系

详情

       激光功率合束模块
    Laser power combining module


  • 产品特点 Features
  • 内置包层剥除器Built in bag stripper CPS
  • 极高的耦合效率Very high coupling efficiency>99%
  • 多种报警输出Multiple alarm outputs

☆ 应用范围 Application
  • 高功率光纤激光High Power Fiber Laser
  • 高功率半导体激光器High power semiconductor laser

☆ 技术规格 Specifications
总功率Optical Power Rating 3kW ~ 6 kW
效率Transmission Performance >99 %
输入端口Number of Inputs 3 ~ 6
输出光束质量 Output BPP 3mm mrad   For M2 < 1.4
单臂最大输入功率Maximum Input Power per 1100W
输入光纤类型Input Fiber Types 20/400 um NA=0.06/0.46
25/400 um  NA=0.06/0.46
输入尾纤长度Input pigtails length 1.5M
输出光纤类型Output Fiber Types 50/360 um NA=0.22/0.46
100/360 um NA=0.22/0.46
输出长度Output length 5M

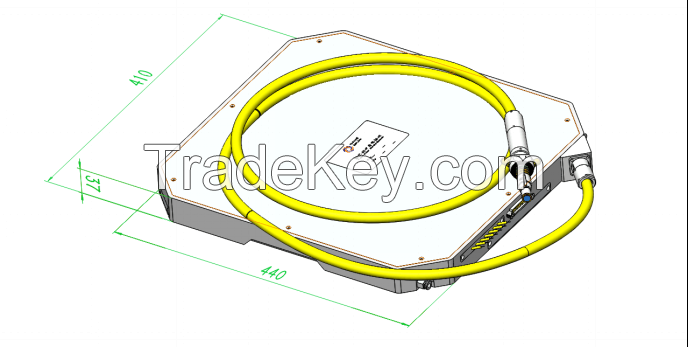

封装尺寸Package Dimension 440 x 410 x 37 or Specify
冷却方式Cooling Method conduction via bottom surface
工作温度Operating Temperature +15℃~+25
储存温度Storage Temperature -40℃~+75℃



  • 订购信息 Ordering Information
器件编号
Device ID
说明
Explain
选项
Option
XX-XXX 器件类型
Device type
XQ-QBH
X 总功率
aggregate capacity
3=3KW,6=6KW
X 输入光纤类型
Input Fiber Type
A=20/400 um NA=0.06/0.46
B=25/400 um NA=0.06/0.46

X 输入尾纤长度
Input pigtails length
1.5M
X 输出光纤类型
Output Fiber Type
1=100/360 um NA=0.22/0.46
2=100/360 um NA=0.22/0.46
XX 输出光纤长度
Output Pigtail Length
5M or Specify
X 封装尺寸
Package Dimension
A=440x410x37  S= Specify
Example:XQ-QBH-3-A-1.5M-1-5M-A
