Maximum 6400 bar high pressure small water booster pump for liquid/chemical/water/oil

详情

Product Description:

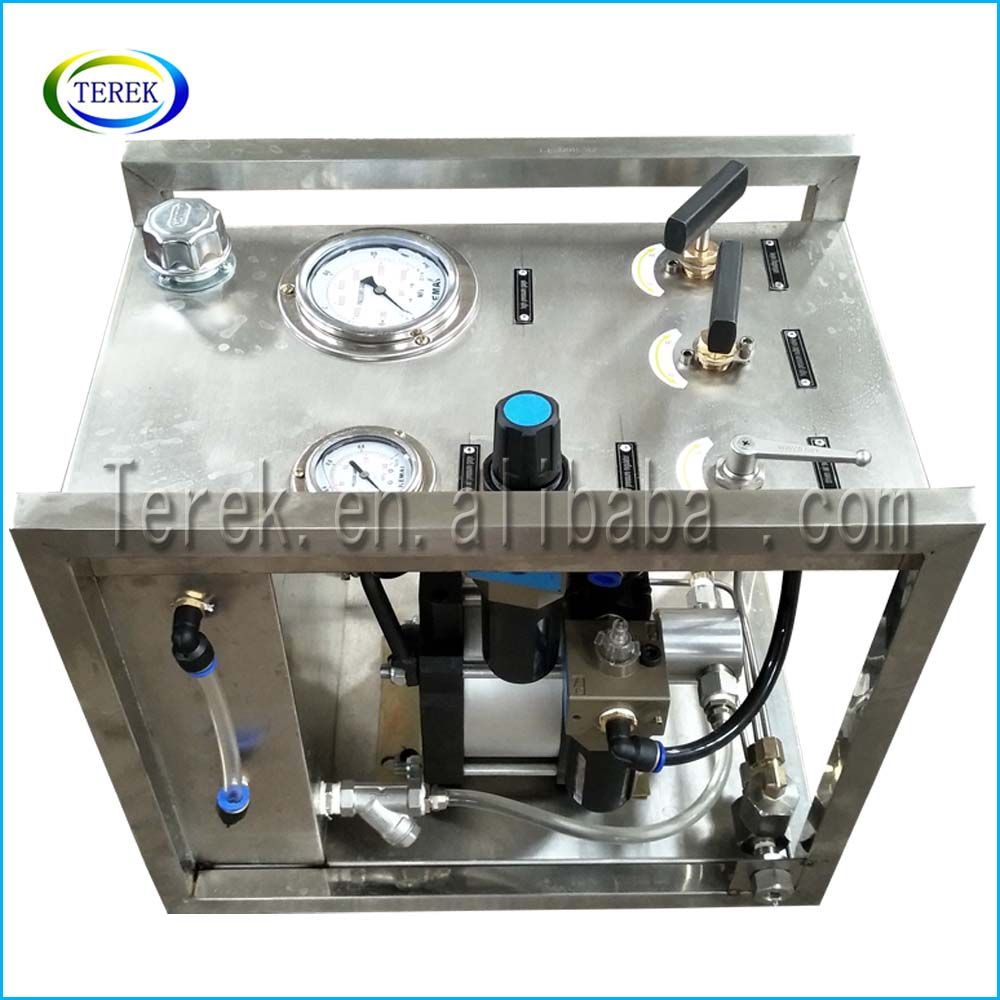

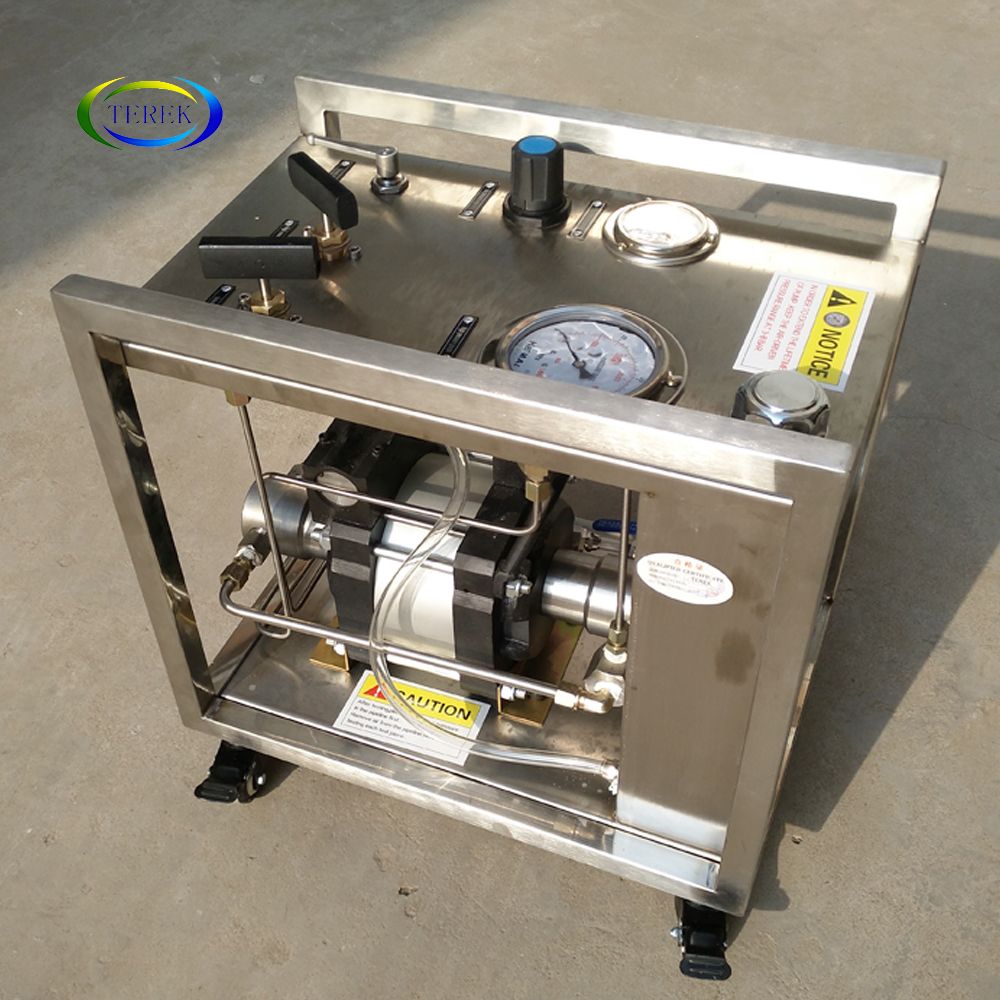

The structural design of the TEREK Fluid pressurized control cabinet are compact and according to the special requirement of customers, Combined the air driven fluid booster pumps、valves 、control switches and other precision accessories are assembled in the frame or closed cabinet.

The equipment is easy to operate, The pressure gauges、valves and pressure regulators are mounted on the control panel. The outlet pressure is easily adjustment by a simple air pressure regulator.

The TEREK pump will stop working automatically when the output pressure reaches the preset value, The pump will start automatically when the outlet pressure drops slightly or the air drive pressure increases.

TEREK Booster pump have a variety of pressure ratios, These series of pumps are ideal choice for various hydraulic power operations. The maximum operating pressure up to **0Mpa.

The output pressure is produced by pneumatic booster pump, Therefore the electric connection will not be necessary.

The fluid pressurized control cabinet has been equipped with the fluid booster pump、the drive air water filter、the pressure regulator valve、 Pressure gauges and manual pressure relieve valve. The main parts of the equipment are assembled in closed stainless steel cabinet or stainless steel frames. The pressure gauge、valve and pressure regulator will be mounted on the panel. The corresponding sign will also be marked on the panel.

The ideal working high pressure can be achieved by adjusting the driving air pressure. When the driving air pressure and output pressure are balanced, The pump will automatically stop the filling pressure, and the output pressure will remain at the preset value.

The hydraulic device can be used for pressure testing of various components, research and testing institutions and industrial pressure field。


Product parameters:

Model A:  Simple frame type of stainless steel material

Model B:  Closed cabinet type of carbon steel material

Model C:  Closed cabinet type of stainless steel material


Type	Pressure ratio	Max outlet pressure  (bar)	Max flow   (L/min)	Connection size(inch)Drive	Connection size(inch)   Inlet	Connection size(inch)   Outlet
LU-LKD*6	6:1	*8	*9.*1	G1/2	NPT 1/2	NPT 1/2
LU-LKD**0	*0:1	*0	*8.*4	G1/2	NPT 1/2	NPT 1/2
LU-LKD**6	*6:1	**8	*2.*2	G1/2	NPT 1/2	NPT 1/2
LU-LKD**8	*8:1	**4	7.*1	G1/2	NPT 1/2	NPT 3/8
LU-LKD**0	*0:1	**0	4.*9	G1/2	NPT 1/2	NPT 3/8
LU-LKD**4	*4:1	**2	3.*8	G1/2	NPT 1/2	NPT 3/8
LU-LKD**0	*0:1	**0	2.*4	G1/2	NPT 1/2	NPT 3/8
LU-LKD***0	**0:1	**0	1.*2	G1/2	NPT 1/2	NPT 3/8
LU-LKD***0	**0:1	***0	1.*7	G1/2	NPT 1/2	M*4*1.5
LU-LKD***5	**5:1	***0	1.*4	G1/2	NPT 1/2	M*4*1.5
LU-LKD***5	**5:1	***0	0.*5	G1/2	NPT 1/4	M*4*1.5
LU-LKD***0	**0:1	***0	0.*8	G1/2	NPT 1/4	M*4*1.5

Product advantages:

1. Equipped with high quality pneumatic chemical reagent injection pump, It can easily achieve any adjustable and controllable output pressure and flow.

2.The contact liquid section is stainless steel, strong corrosion resistance, suitable for a variety of chemical reagents;

3. It can be used at various levels of wellhead pressure, the pressure system has control function.

4.Chemical reagent injection system output pressure is high, The output pressure can be adjusted through the pressure regulating valve, the system has to stop working under the set pressure;

5.Advanced technology, reasonable structure design. The features of small size, light weight, beautiful appearance;

6.By air/gas driven, no need to use electricity, there will be no spark generated, safe explosion-proof;

Applications include:

1、Hydrostatic pressure tests and blasting test for valves, pipe and tubes, pressure vessels, pressure switches, tanks, hoses, pipes and tubing, pressure gauges, cylinders and etc.

2.Safety valve and water pressure testing.

3.Automobile brake system and nozzle test.

4.Injection of chemical reagents in a pipe or other instruments

5. Pressure testing of high pressure liquid systems and instruments.

6. Performance test and calibration of instrument and meter.

7.Mining, oil field and fire & safety Application of these field

8.Increase the strength of clamping, forming, drilling, cutting, stamping, etc.

9.Precision lubrication and spraying



*0.Liquid transfer and liquid recovery

Accurate selection:

How to Select Air Driven Liquid Boosters/Systems?

In order to choose the accurate and appropriate booster pump or systems for you,

Please kindly reply us the following questions:

1. What is the current pressure of the liquid ? (    )bar

2. What kind of liquid needs to be pressurized ?  Such as oil ,water, corrosive liquid and chemical liquid ?

3.What is the output pressure of the liquid you want?(    )bar

4.What is the driven air pressure ( Your air compressor) you can provide ?(    )bar,

Because our booster pump is completely air driven and no need any electricity

5.How much of the outlet liquid flow rate do you need?(    )L/min

6. What is its purpose or application field you used it?  Thanks


FAQ:

1.Q : Are you manufacturer ?



A: Yes, We are the manufacturer with continuous and improved R&D. Production, Quality Check and service supply.

2.Q : Can I get your price list ?

A: Yes, Sure. In order to send you our available offered price. Please choose the products and let us know the product model and requirement in detail.

3.At which port do you usually ship the good?

We usually ship goods via Qingdao port of China.

4.Q : What is payment terms ?

A: Sample order : **0% full payment before start to production;



Large order : *0% deposit first, *0% pay after see the BL copy ;



5.Q: Can give free sample ?



A : Free : if small spare parts and the cost not too much is ok ;



Not Free : the cost expensive and all the machine can not be free ;



6.Q : How long can be finished the goods ?



A : Sample order : within one week ;



Large order : ****5 days ; According to your purchase quantity.



Contact Information:



Any more questions, please contact us, and welcome to add my skype or whatsapp for more details chat.





国家:	China
型号:	LU-LKD Series
离岸价格:	1000 ~ 1500 / Piece ( Negotiable ) （面議） 获取最新报价
位置:	Jinan city Shandong province
最小订单价格:	1000 per Piece
最小订单:	1 Piece
包装细节:	Export standard Carton with foam or as customers requested
交货时间:	10-15 working days after having received your paym
供应能力:	100 Piece per Month
付款方式:	Western Union, L/C, T/T
產品組 :	Pneumatic liquid booster pump
