Application scope
Automobile mechanical parts coating, cell phone s
point glue, mobile phone battery packaging, laptop battery
package, the coil point glue, PCB bond fixed sealant, IC
sealant, horn external punctuate glue, PDA sealant, LCD
sealant, IC packaging, IC bonding,casing bonding, optical
device processing, mechanical seal, etc.
Applicable fluid
Silica gel, EMI conductive adhesive, UV glue, AB glue, fast
dry glue, epoxy adhesive, sealant, hot glue, grease, silver
glue, red glue, solder paste, cooling paste, prevent solder
paste,transparent lacquer,screw fixation agent, etc.
Main use
1) Processing with bonding, infusion, coating, sealing, filling,
drop, linear/ arc/ round gluing etc.
2) Dispense in point, line, surface, arc, circle and irregular
curve, and triaxial linkage function is available.
Main feature

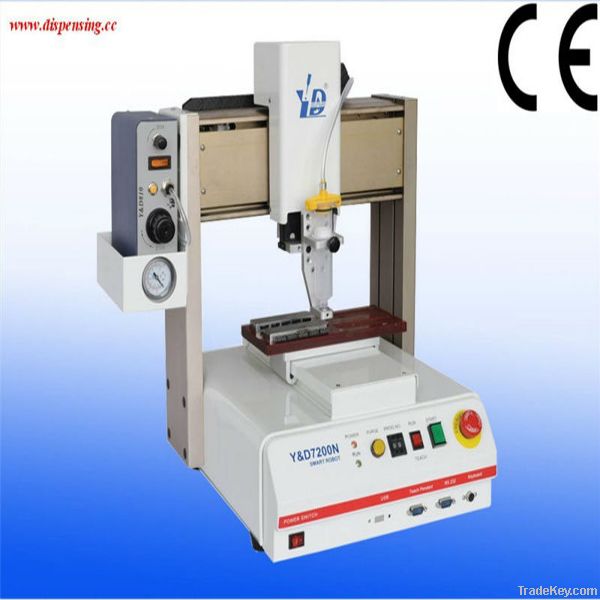

1.Y&D***0N is a dispensing robot in the desktop robot series
with a working area **0mm x **0mm.
2.Particular attention has been given to frame accuracy in an
industrail robot of this size.
3.Y&D ***0N dispensing robot is popular . Its programming
method is teach pendant, it uses teach box .
4.The operation interface is controlled in English . It is easy to
learn and to operate.
5.Dispense in point , line , surface ,arc , circle and irregular curve .
Triaxial linkage function is available.
Specification
Y&D***0N dispenser robots
|
Models |
Y&D***0N |
|
Working Range X/Y/Z(mm) |
**0/**0/*0 |
|
Load Y-AXIS/Z-AXIS |
5 kg/3 kg |
|
Speed X&Y/Z (mm/sec) |
0.****0/**0 |
|
Resolution |
0.*1 mm/Axis |
|
Repetitive Positioning Accuracy |
+/- 0.*1 mm/ Axis |
|
Program Capacity |
Min **0 Group,***0 points/group |
|
Data Storage Type |
CF Card |
|
Program Display |
Teach Pendant LCD |
|
Motor System |
3 Phase Micro-stepping motor |
|
Control Method |
PTP & CP |
|
Interpolation Function |
3 axis (suit for 3D requirement) |
|
Programming Method |
Teach pendant/Keyboard |
|
I/O Signals Port |
8 Inputs/8 Outputs |
|
External Control Interface |
RS**2 |
|
Power Supply |
AC **0 ~ **0V **0W |
|
Working Temperature |
*0 - *0 C |
|
Working Relative Humidity |
*0 - *0% no condensation |
|
Dimensions (WxDxH mm) |
**5 x **0x **0 |
|
Net Weight (kg) |
*3 |
| 国家: | China |
| 型号: | Y&D7200N |
| 离岸价格: | ( Negotiable ) 获取最新报价 |
| 位置: | Dongguan |
| 最小订单价格: | - |
| 最小订单: | - |
| 包装细节: | carton |
| 交货时间: | 7~10 work days after payment |
| 供应能力: | 150 Set per Month |
| 付款方式: | T/T |
| 產品組 : | - |
