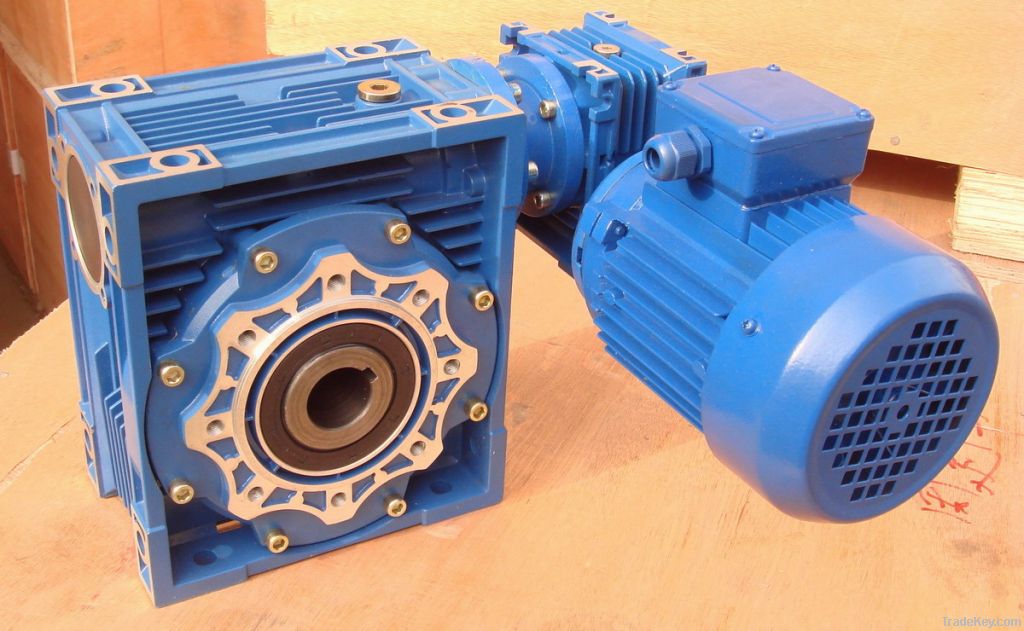

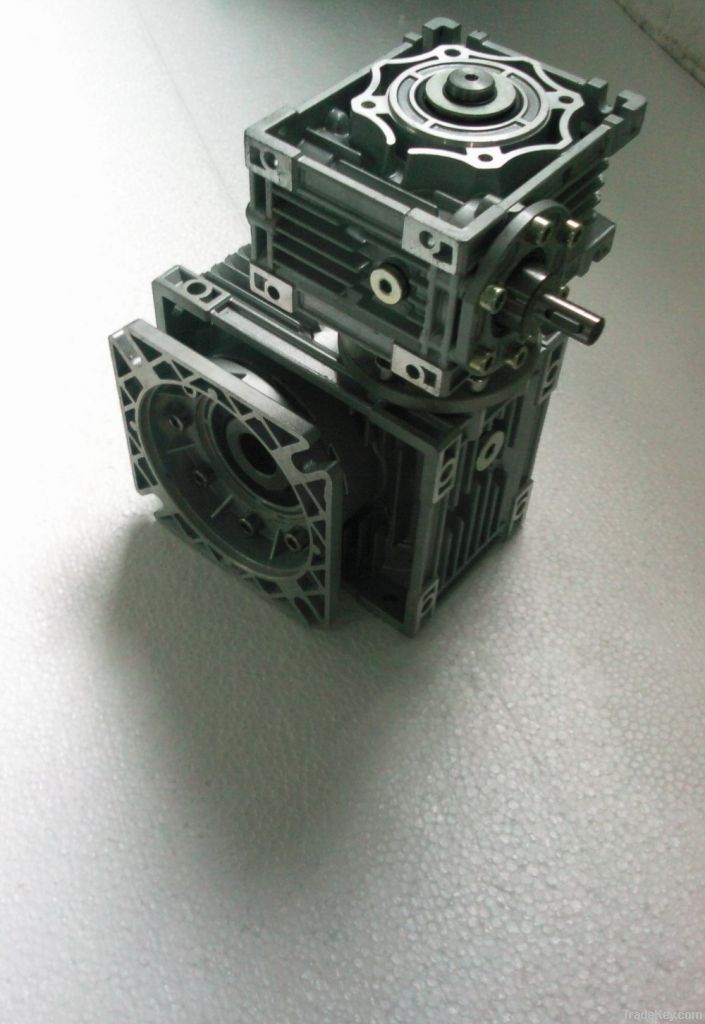

NMRV series worm gearbox
adopt a pair of worm gear and worm wheel make structure more
rationalization, it not only providing better transmission
efficiency and carrying capacity, but also reduces space area in
structure position, meanwhile, at the condition of close volume,
it can get bigger transmission ratio. it can combine with all
kinds of speed reducer and speed variator, which can satisfy
different using demand. Size: NMRV*0. NMRV*0.
NMRV*0. NMRV*3. NMRV*5. NMRV*0. NMRV**0. NMRV**0. NMRV**0
Structure Features
1. Made of high-quality aluminumalloy, light in Weight and
non-rusting
2. Large in output torque
3. Smooth in running and low in noise, can work long time in
dreadful conditions
4. High in radiating efficiency
5. Good-looking in appearance, durable in service lifa end small
in volume
6. Suitable for ominbearing installation
Main Materials
1. Housing: Die-cast aluminum alloy(size ******0), cast iron(size
******0)
2. Worm sahft: *0CRMNTI, carbonize heat treatment make the
hardness of gear's surface up to ****2 HRC. Retain carburization
layer's thickness between 0.3 and 0.5mm after precise
grinding
3. Worm wheel: Wearable stannum bronze alloy
Surface painting
Aluminum alloy housing:
1. Shot blasing and special antiseptice treatment on the aluminum
alloy surface
2. After phosphating, pain with bule. Sliver, grey, red or based
on customer demands.
