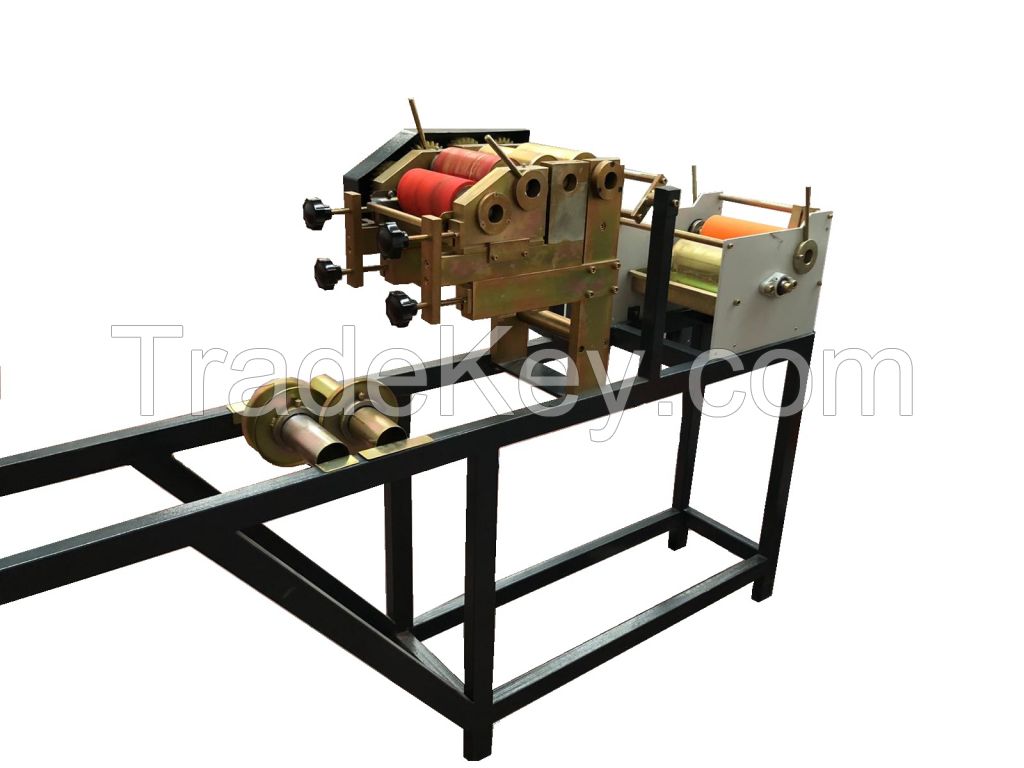

Paper Tube Making Machine

详情

Maximum Tube Diameter           **0mm (OD)

Maximum Tube  Wall Thickness               *8mm

Minimum Cut to Length               **0mm

Maximum Cut-to-Length            ***0mm

Maximum Tube Cutting Speed *0 m/min

Maximum Number of Blades    *0 units

Maximum Number of Layers     *5 Pieces

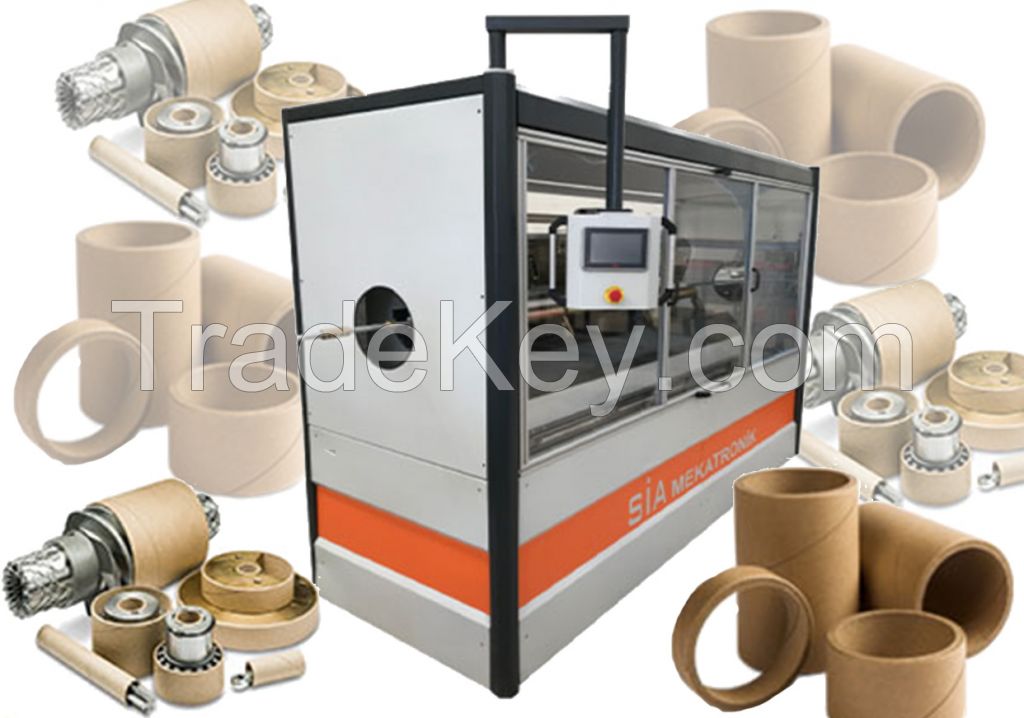

PAPER CORE/ TUBE MAKING MACHINE

The multi servo knife cutting unit provides a configuration of at least one to ten

knifes according to customer requirements. Our cardboard spiral pipe manufacturing

machine features; synchronous cutting, high speed, length adjustment, energy

saving, silent operation, tight winding and clean edge cutting. It has never been

easier and more effective to produce a **0% height precision cardboard spiral. Our

Multi Spiral Cutting Machine produces a wide range of spiral pipes in a range of *0

mm to **0 mm diameter, wall thickness between 1 mm and *0 mm, at least 2 and at

most *0 cardboard layers. With SEW EURODRIVE and SİA MEKATRONİK cooperation,

you will feel that quality and performance have reached the most reliable points.

Each blade unit is controlled separately by servo drives, and then special

adjustments are made with the touch screen keypad according to customer request.

Blade settings; after adjusting the inner diameter of the spiral tube, each blade unit

will assume its own position. It is mounted on external support units that

automatically position themselves for the inner diameter and wall thickness of the

spiral pipe adjusted by servo controlled blades. We are pleased to meet your

questions and requests, please visit our website for information:

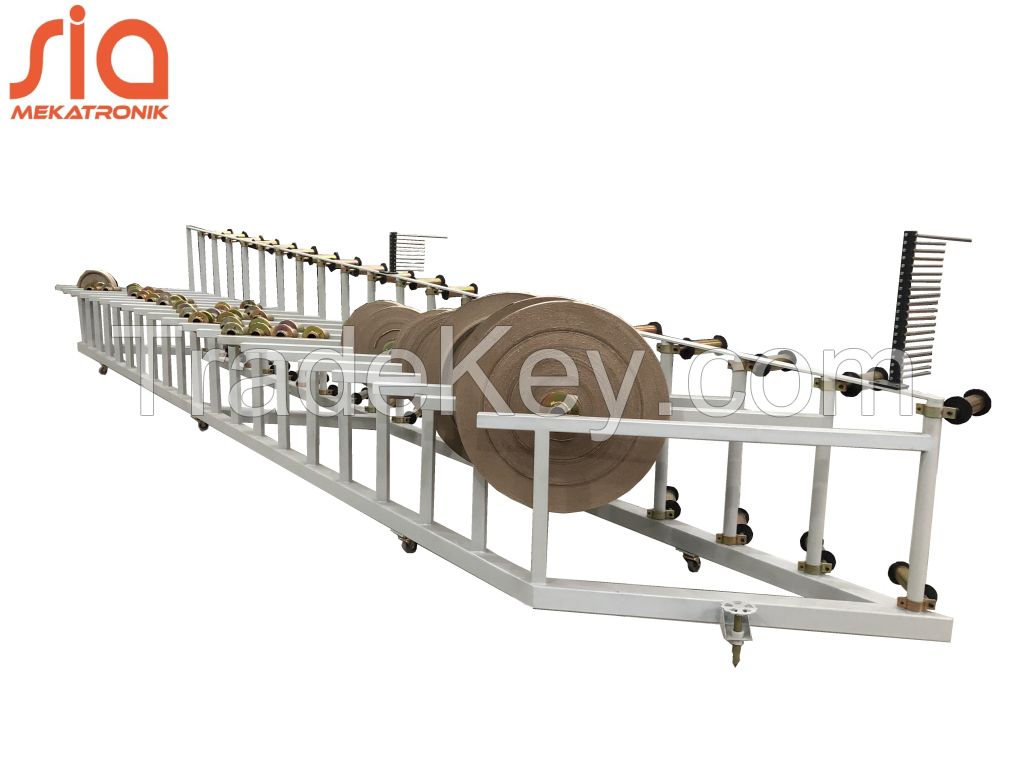

PAPER BOBIN STAND

*5 degree paper roll stand.

Max ***0 layers, or customized the layers.

Paper roll distance **0 mm.

Paper roll center adapter.

Wheeled chassis.

Chassis fixing screwes.

PAPER GLUE STAND

Pneumatic glue pump **0 Lt/min.

Electrical glue pump **0 Lt/min.(Optionally)

Electrical glue heater resistance with oil.(5 KW 3 phase)

Mechanic paper breake

Mechanic glue scraper

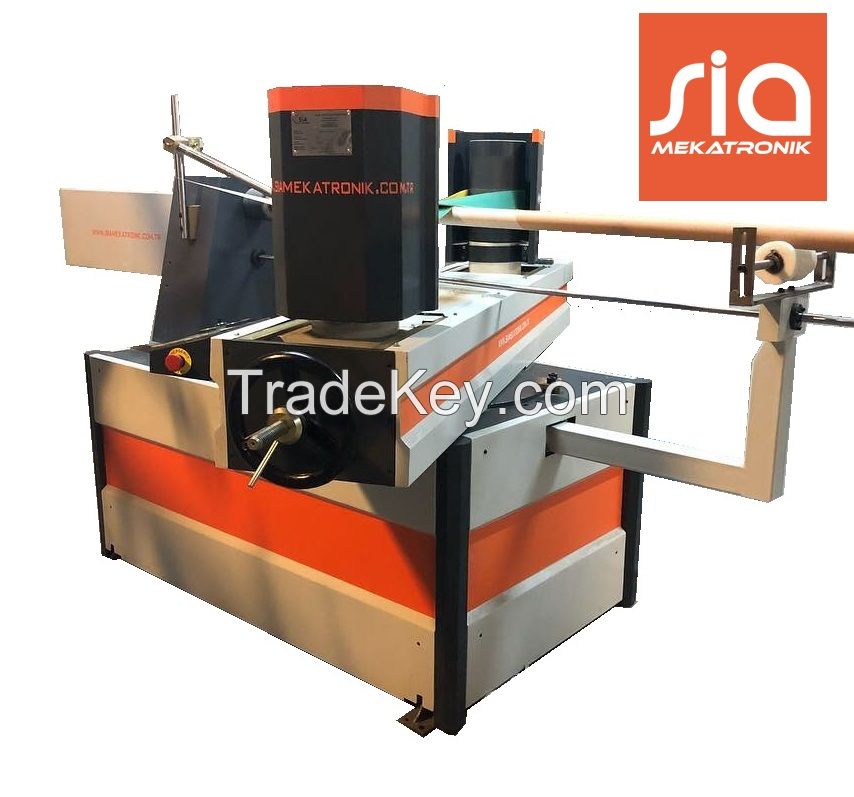

PRE FORMING STAND

Min.diameter: *0 mm

Max diameter: **0 mm

Min-thickness: 0,5 mm

Max-thickness: *0 mm

Rewinding noses: Two noses single belt

Speed of adjust and control: Inverter

Power : 3x**0V

SERVO CUTTING STAND

6 Blades Pipe Cutting System with Servo

Cutting Motor: 0,*5 Kw (6 Pieces)

Full Electronic Servo Controlled

Length Cutting System

Servo motor controlled blade cutting movement

Min: **0 mm Max: ***0 mm Cutting Length

Min: 0,5 mm Max: *5 mm Cutting Thickness

Min: *0 mm Max: **0 mm Inner Tube Drawing Feature

Smooth Cutting + - 2 mm

Production Speed Min: Max: *0 meters / minute

BELT CONEYOR STAND

Belt motor 0.*7 kw.

Belt length ***0 mm.

Belt width **0 mm.

Belt motor with speed control.

COLOR PAINTING STAND

*-Roll motor 0.*7 kw.

*-Roll length **0 mm.

*-Printing width **0 mm.

*-Roll motor with speed control.

SPIRAL PIPE MACHINE

Minimum pipe diameter             8mm (ID)
